Ulna/Radial Plates

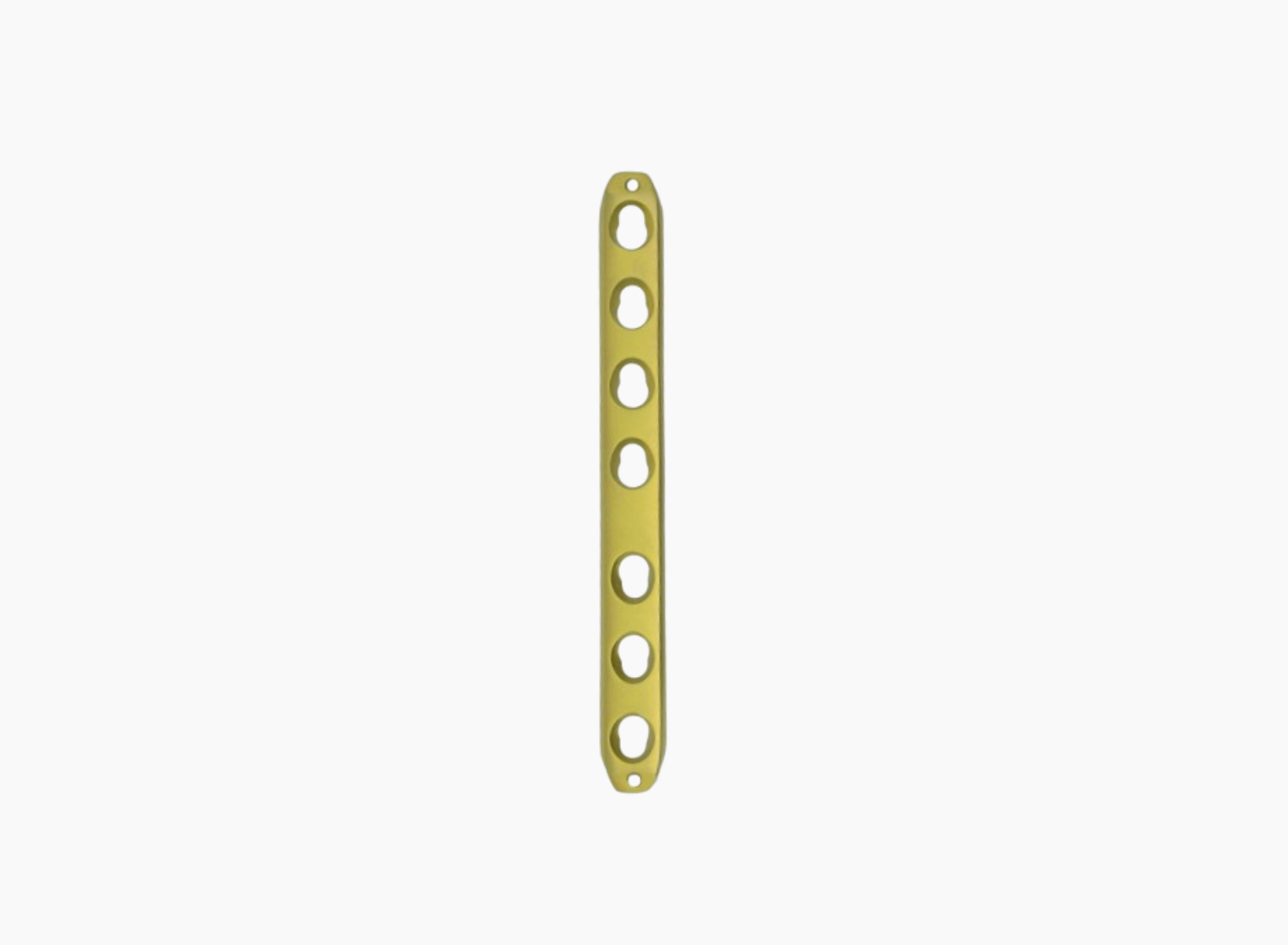

Comlok® Plate Small, 3.5mm

Profile:

Width: 11.5 mm
Thickness: 3.2 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of shaft fractures of radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-907.05 to Ti-907.125 to 12
S.Steel907.05 to 907.125 to 12

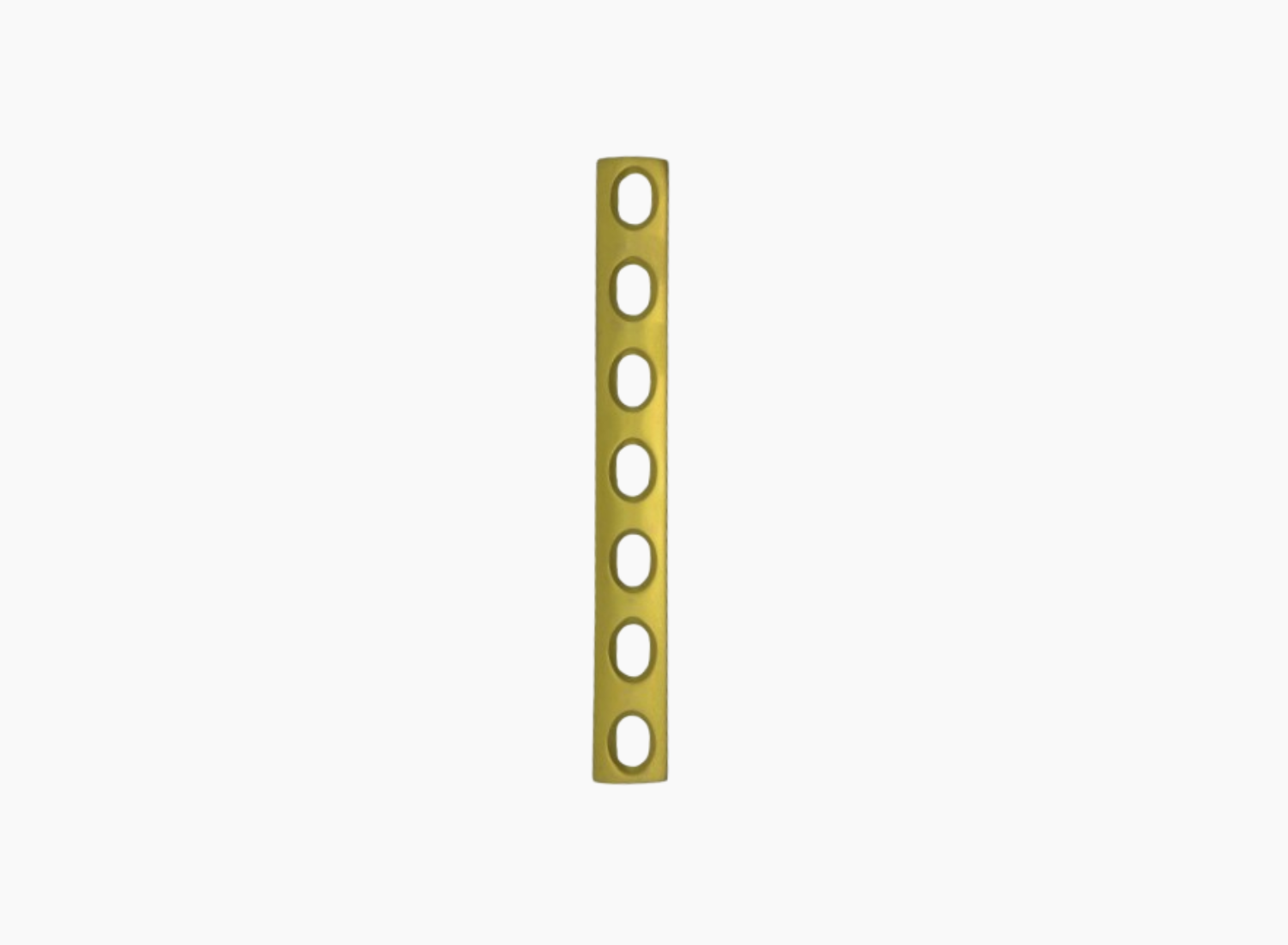

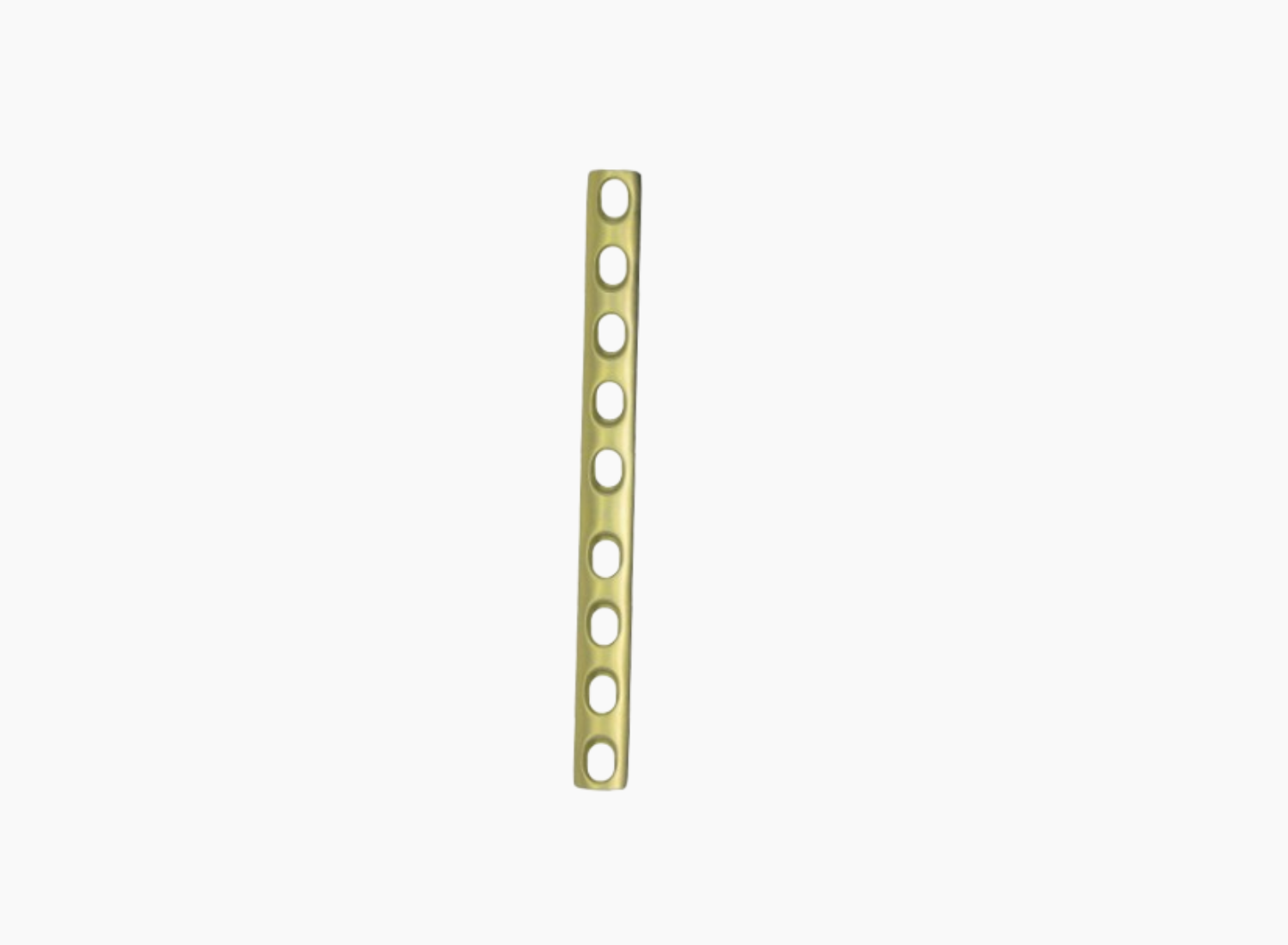

Dynamic Compression Plates (DCP), Small, 3.5mm

Profile:

Width: 10.0 mm
Thickness: 3.0 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm

Indications

For fixation of shaft fractures of radius

Enquire Now
Catalogue NumberHoles
TitaniumTi-142.02 to Ti-142.122 to 12
S.Steel142.02 to 142.122 to 12

LcDCP (Limited Contact DC Plates) Small 3.5mm

Profile:

Width: 11.5 mm
Thickness: 3.2 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of shaft fractures of radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-148.04 to Ti-148.124 to 12
S.Steel148.04 to 148.124 to 12

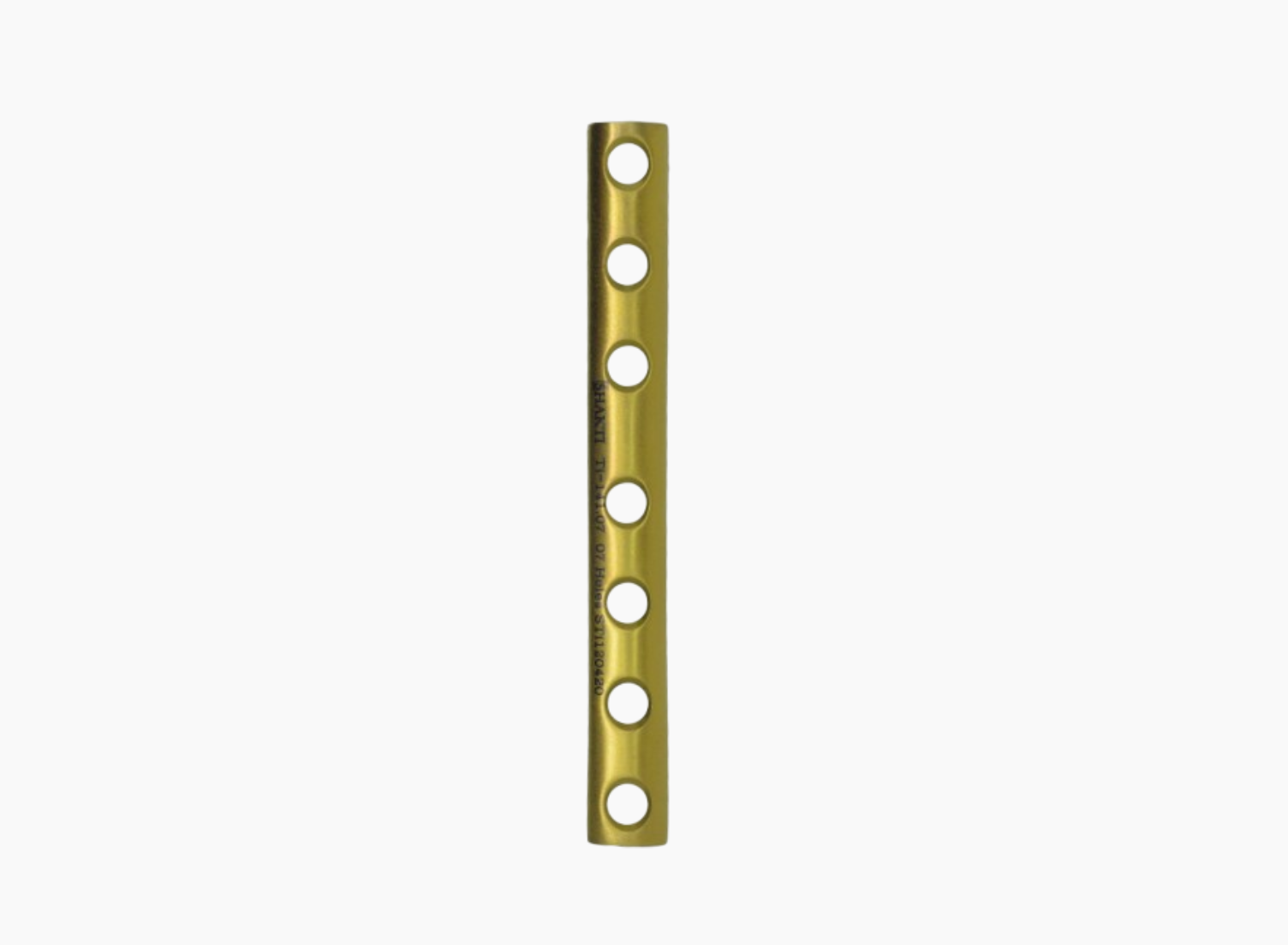

One Third Tubular Plates 3.5mm

Profile:

Width: 10.0 mm
Thickness: 1.0 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of shaft fractures of radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-141.02 to Ti-141.122 to 12
S.Steel141.02 to 141.122 to 12

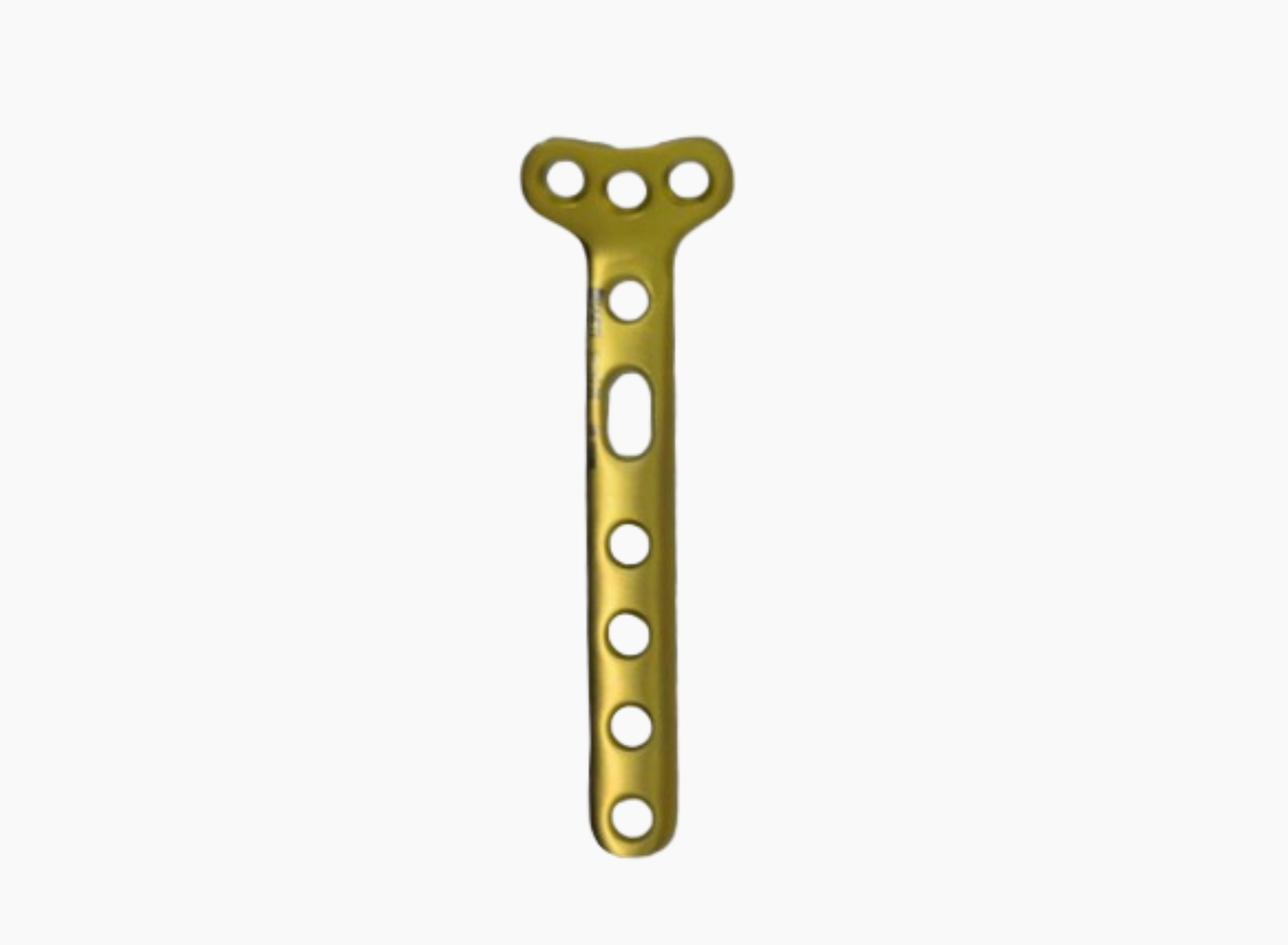

Small T-Plates (Right Angled)

Profile:

Width: 10.0 mm
Thickness: 1.5 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm

Indications

For fixation of extra-articular fractures of distal radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-143.03 to Ti-143.063x3 to 3x6
S.Steel143.03 to 143.063x3 to 3x6

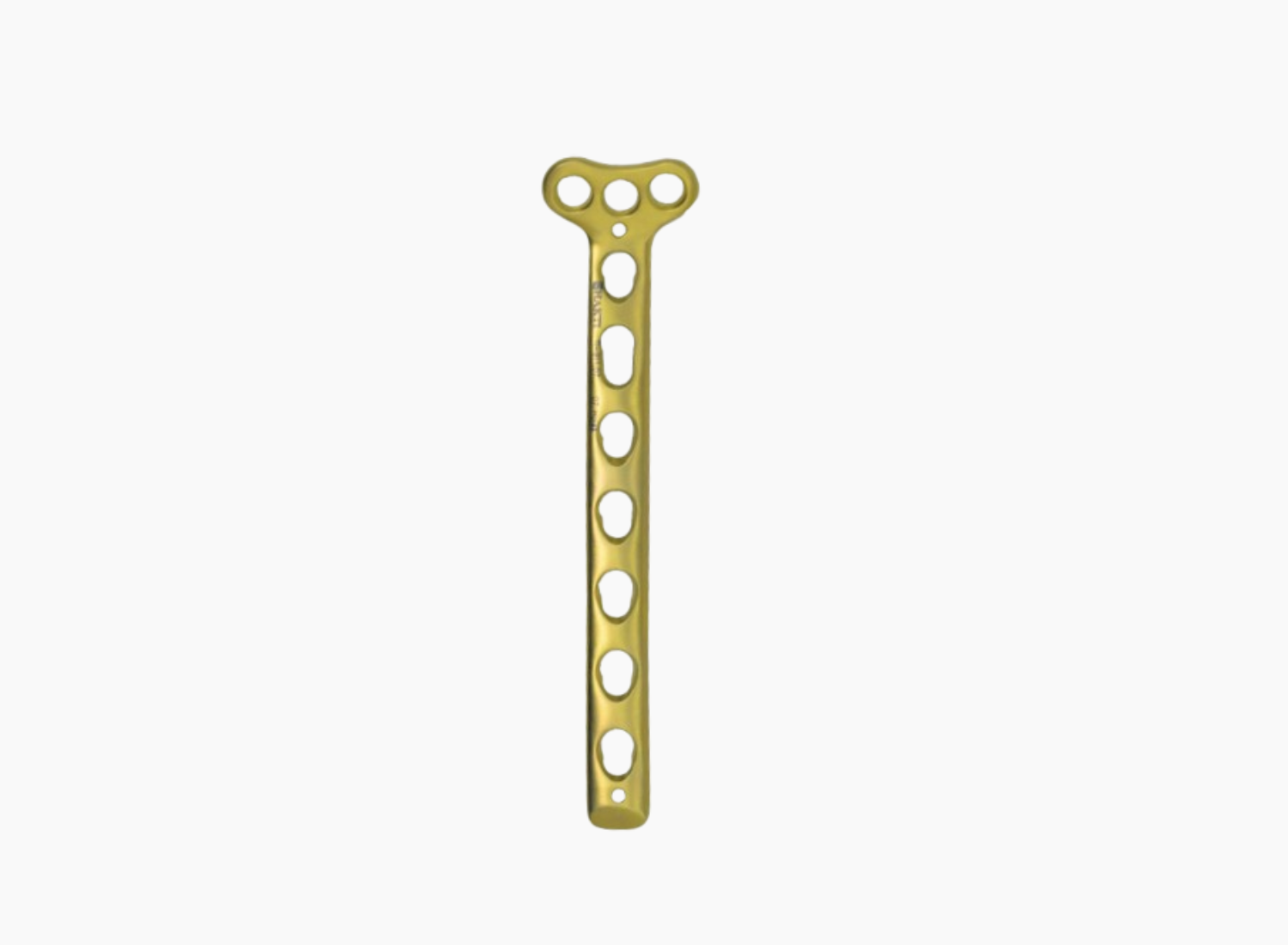

Comlok® T-Plates 3.5mm

Profile:

Width: 10.0 mm
Thickness: 2.0 mm
Holes Spacing: 12mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of extra-articular fractures of distal radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-911.03 to Ti-911.083 to 8
S.Steel911.03 to 911.083 to 8

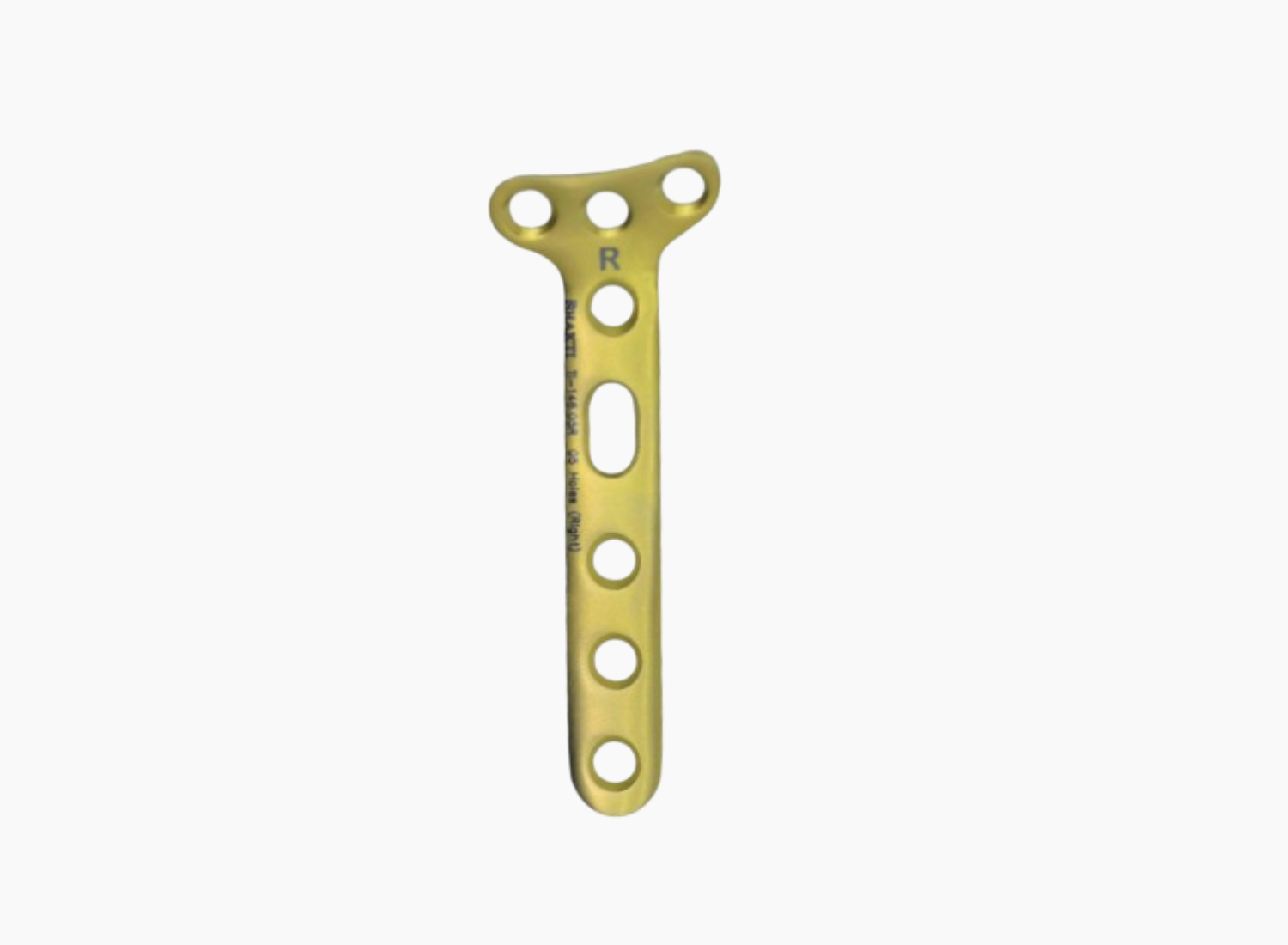

T-Plates For 3.5 mm Screws, Oblique Angle

Profile:

Width: 10.0 mm
Thickness: 1.5 mm
Holes Spacing: 12mm

Screws to be used

Cortical Screw 3.5mm

Indications

For fixation of Intra-articular fractures of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-146.03L to Ti-146.06L3 to 6TitaniumTi-146.03R to Ti-146.06R3 to 6
S.Steel146.03L to 146.06L3 to 6S.Steel146.03R to 146.06R3 to 6

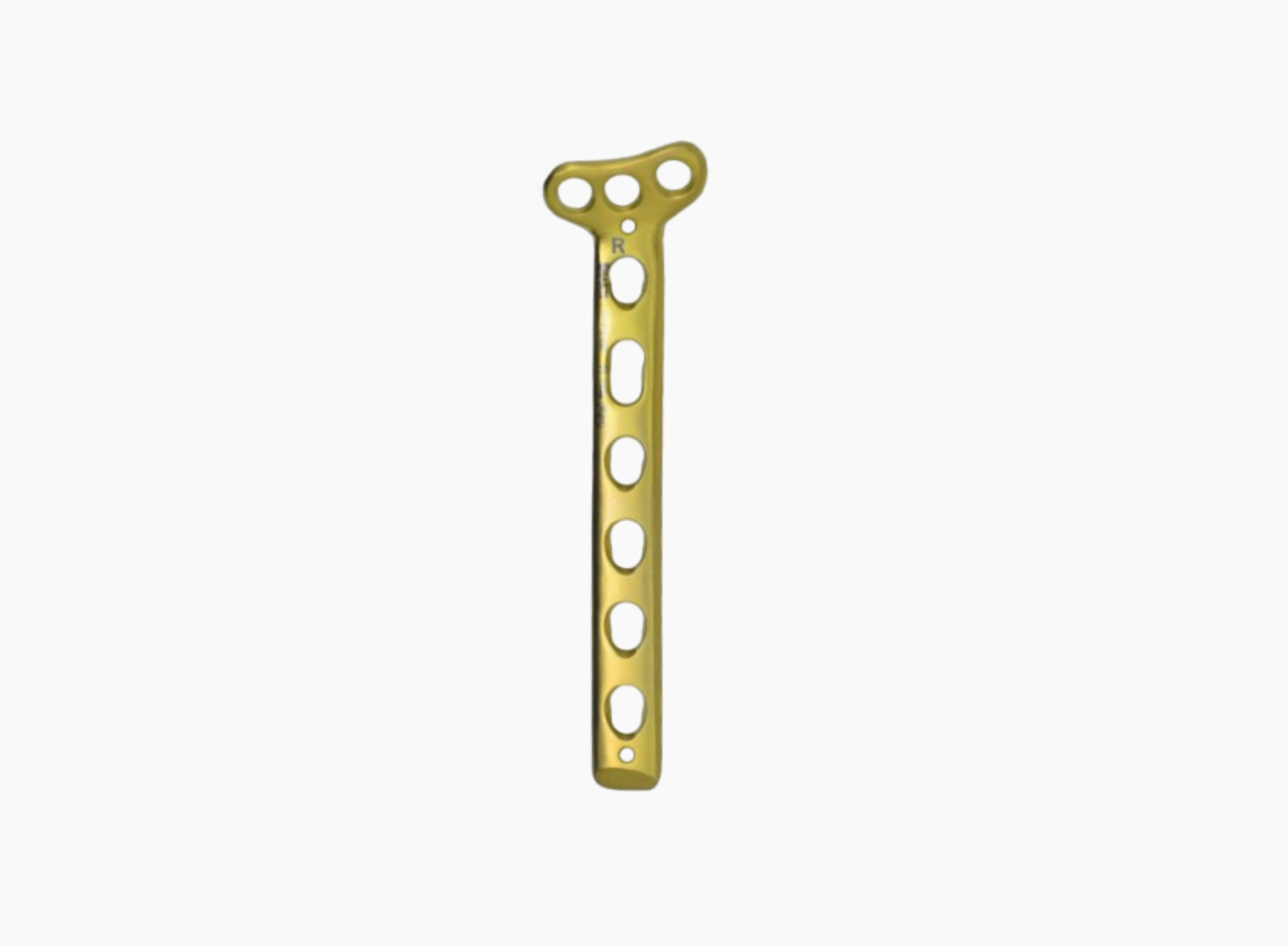

Comlok® T-Plates 3.5mm, Oblique Angled

Profile:

Width: 10.0 mm
Thickness: 2.0 mm
Holes Spacing: 12mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of intra-articular fractures of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-912.03L to Ti-912.08L3 to 8TitaniumTi-912.03R to Ti-912.08R3 to 8
S.Steel912.03L to 912.08L3 to 8S.Steel912.03R to 912.08R3 to 8

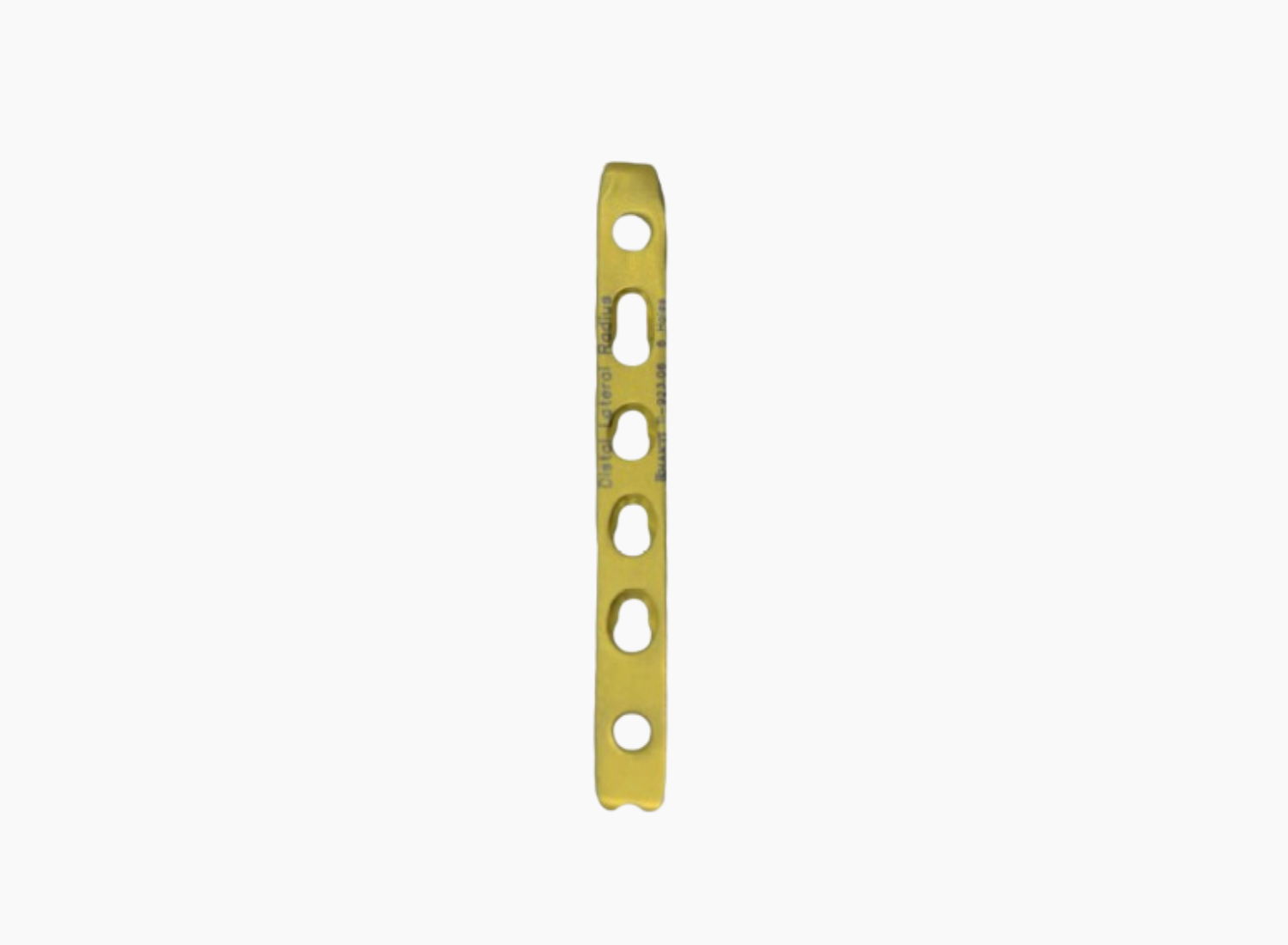

Comlok® Distal Lateral Radius Plate 2.4, Straight

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 mm Comlok® Screws 2.4 mm

Indications

For fixation of fractures of distal radius.

Enquire Now
Catalogue NumberHoles
TitaniumTi-923.05 to Ti-923.065 to 6
S.Steel923.06 to 923.065 to 6

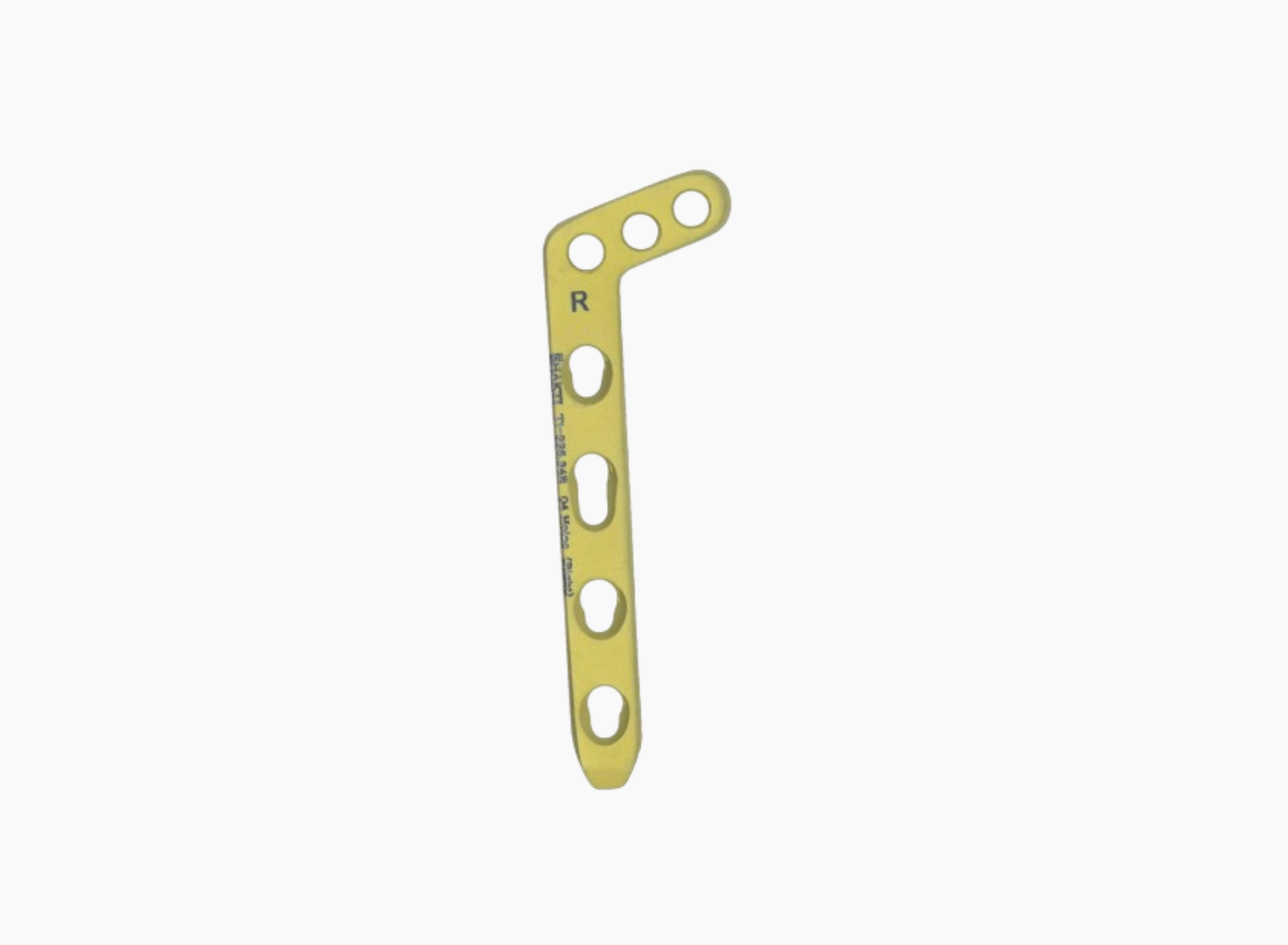

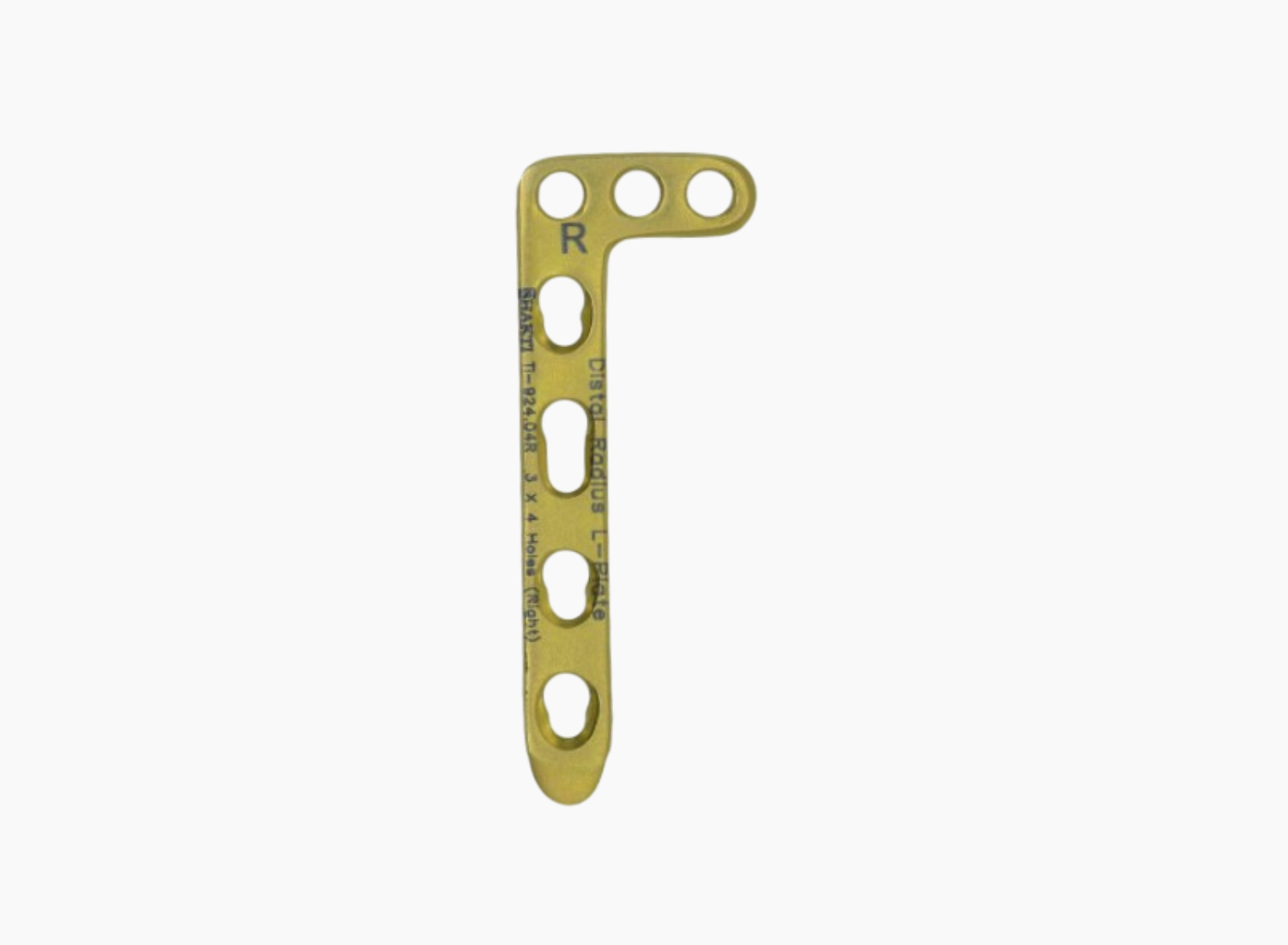

Comlok® Distal Radius L-Plate 2.4

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 & Comlok® Screws 2.4

Indications

For fixation of fractures of distal radius with dorsal
approach.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-924.23L to Ti-924.34L2X3 to 3X4TitaniumTi-924.23R to Ti-924.34R2X3 to 3X4
S.Steel924.23L to 924.34L2X3 to 3X4S.Steel924.23R to 924.34R2X3 to 3X4

Comlok® Radial Head Neck Plate 2.4mm

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm

Indications

For fixation of extra-articular fractures of proximal radial head.

Enquire Now
Catalogue NumberHoles
TitaniumTi-922.02 to Ti-922.042 to 4
S.Steel922.02 to 922.042 to 4

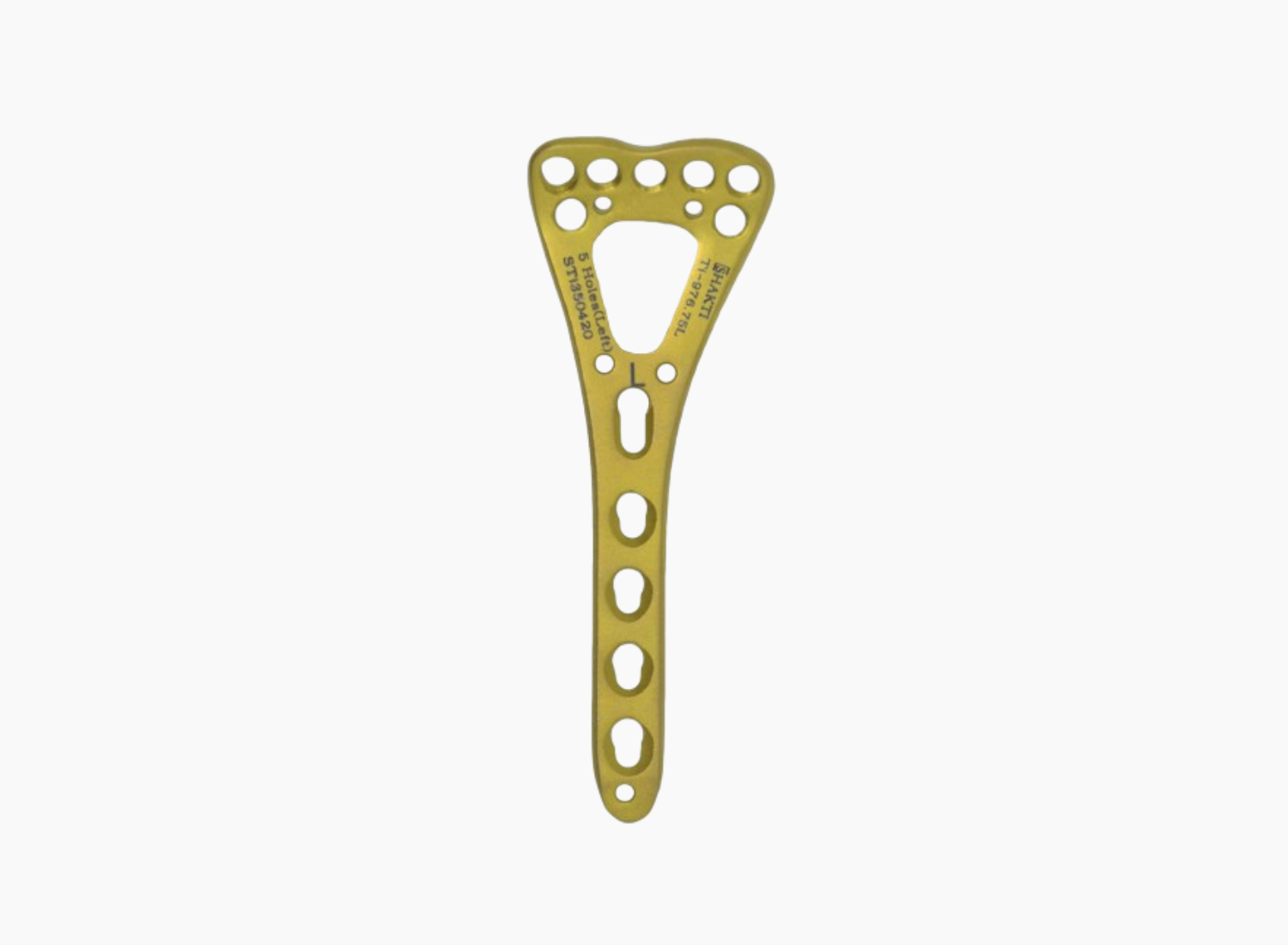

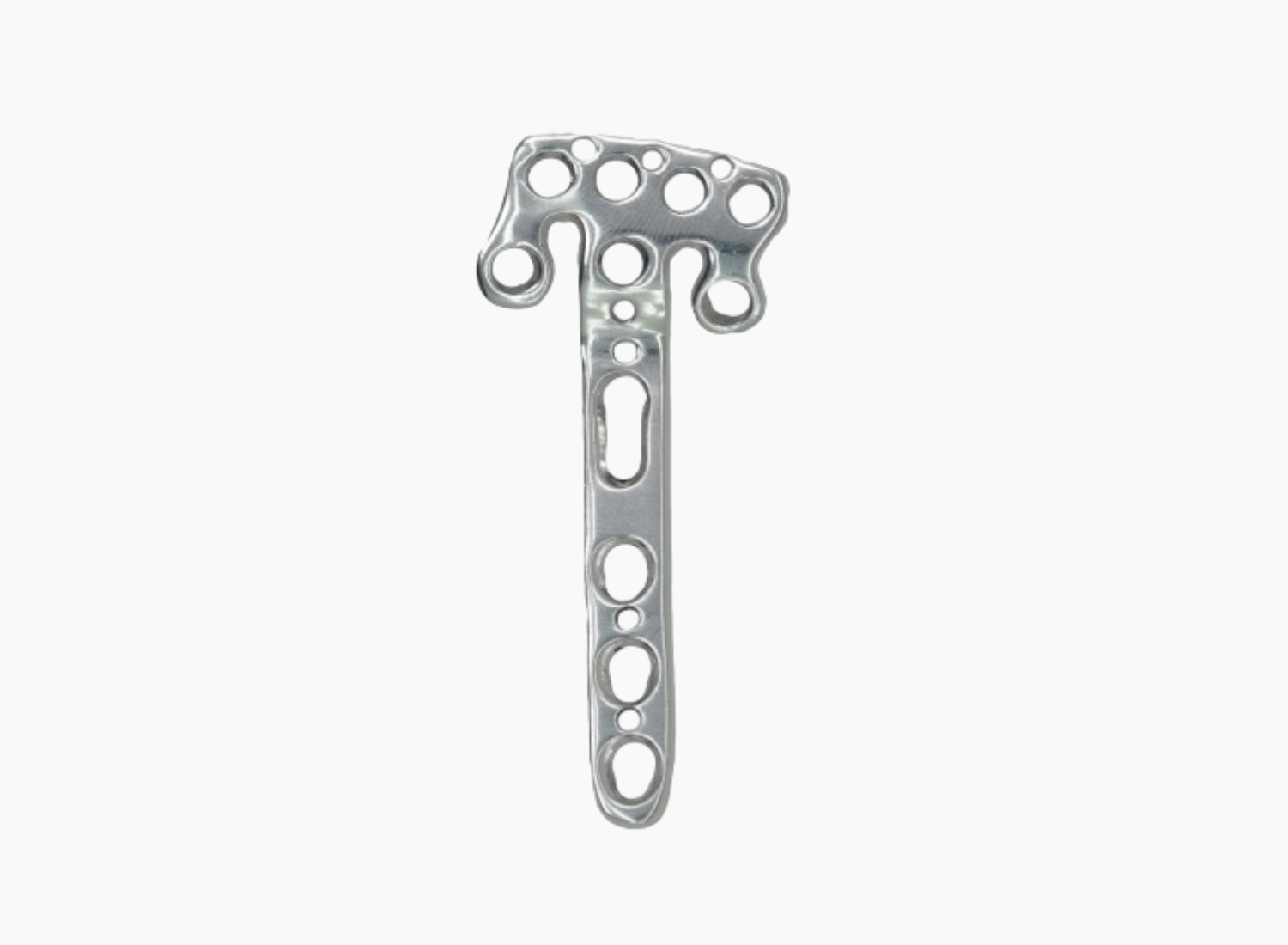

Comlok® Two Column Distal Radius Plate 2.4mm with 6 Head Holes

Profile:

Head Width: 22/25 mm
Shaft Width: 8.0 mm
Thickness: 2.0 mm
Holes Spacing: 8.0 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 2.4 mm & & Comlok® Screws 2.4 mm in the Shaft

Indications

For fixation of intra and extra-articular fractures and osteotomies of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-976.62L to Ti-976.65L6X2 to 6X5TitaniumTi-976.62R to Ti-976.65R6X2 to 6X5
S.Steel976.62L to 976.65L6X2 to 6X5S.Steel976.62R to 976.65R6X2 to 6X5

Comlok® Distal Radius Plate 2.4, Oblique

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm

Indications

For fixation of fractures of distal Radius with dorsal approach.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-926.33L to Ti-926.34L3X3 to 3X4TitaniumTi-926.33R to Ti-926.34R3X3 to 3X4
S.Steel926.33L to 926.34L3X3 to 3X4S.Steel926.33R to 926.34R3X3 to 3X4

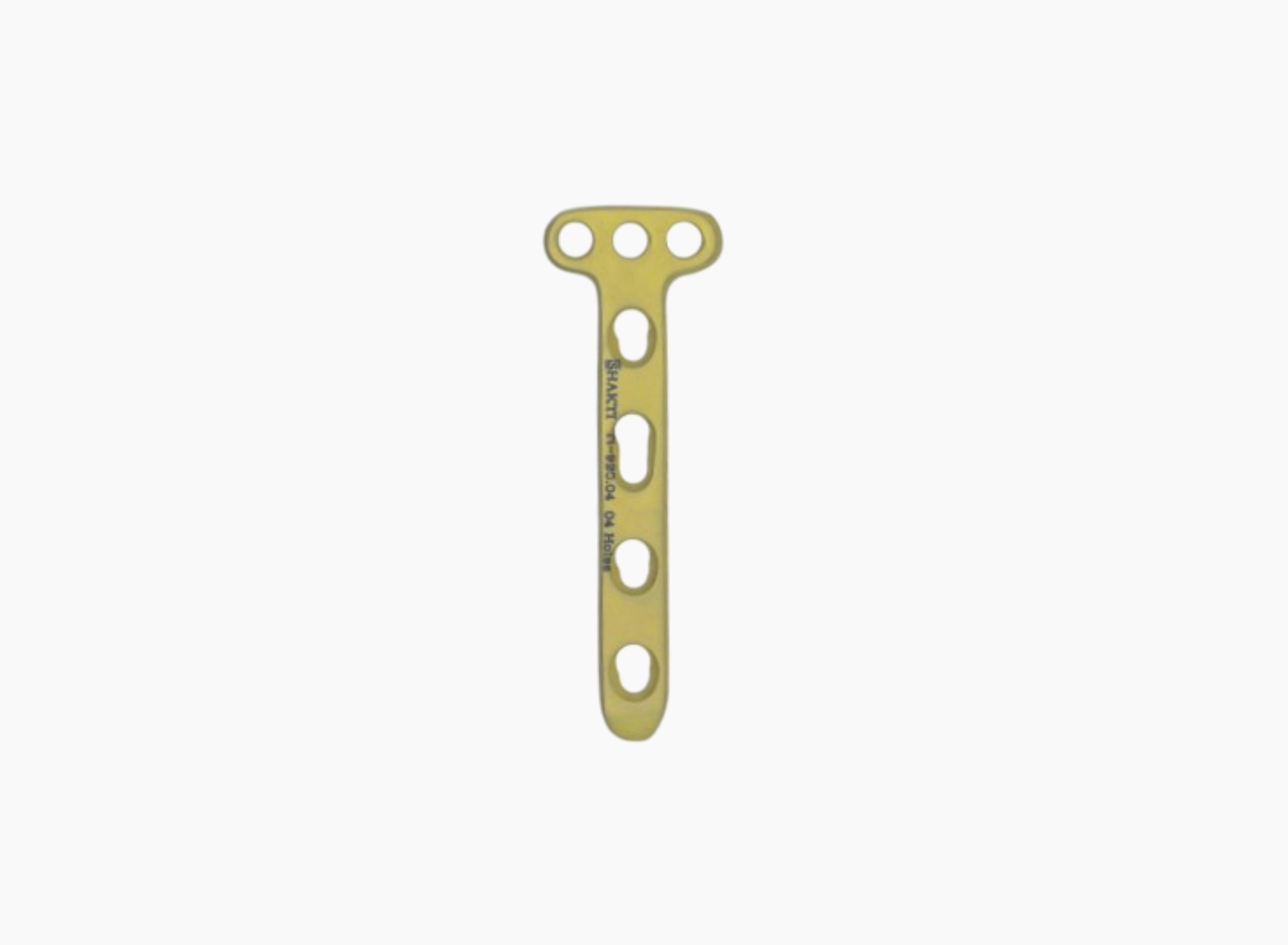

Comlok® Distal Radius T-Plate 2.4mm

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm

Indications

For fixation of fractures of distal radius with dorsal approach.

Enquire Now
Catalogue NumberHoles
TitaniumTi-920.03 to Ti-920.043 to 4
S.Steel920.03 to 920.043 to 4

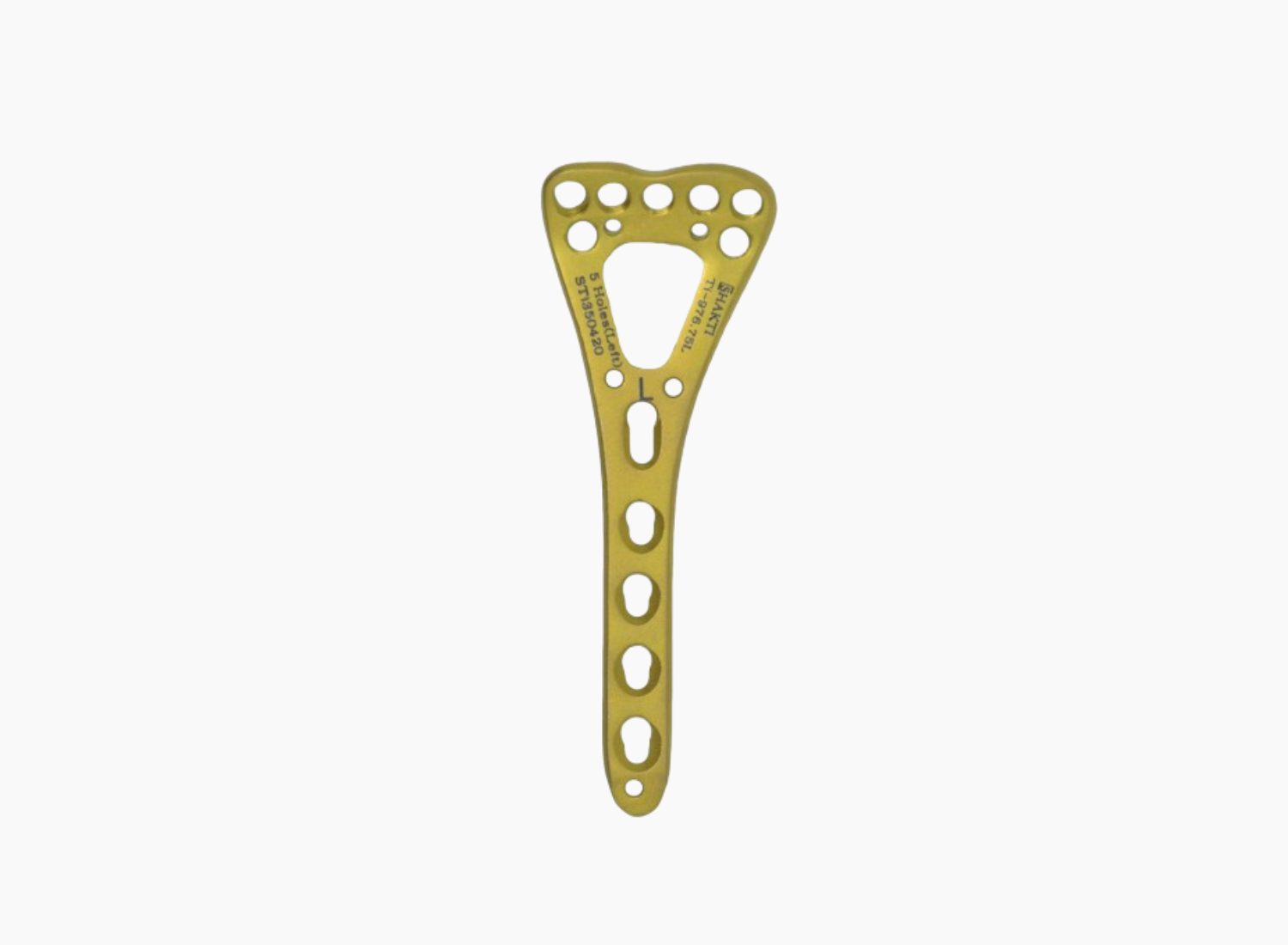

Comlok® Two Column Distal Radius Plate 2.4mm with 7 Head Holes

Profile:

Head Width: 22/25 mm
Shaft Width: 8.0 mm
Thickness: 2.0 mm
Holes Spacing: 8.0 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 2.4 mm & & Comlok® Screws 2.4 mm in the Shaft

Indications

For fixation of intra and extra-articular fractures
and osteotomies of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-976.72L to Ti-976.75L7X2 to 7X5TitaniumTi-976.72R to Ti-976.75R7X2 to 7X5
S.Steel976.72L to 976.75L7X2 to 7X5S.Steel976.72R to 976.75R7X2 to 7X5

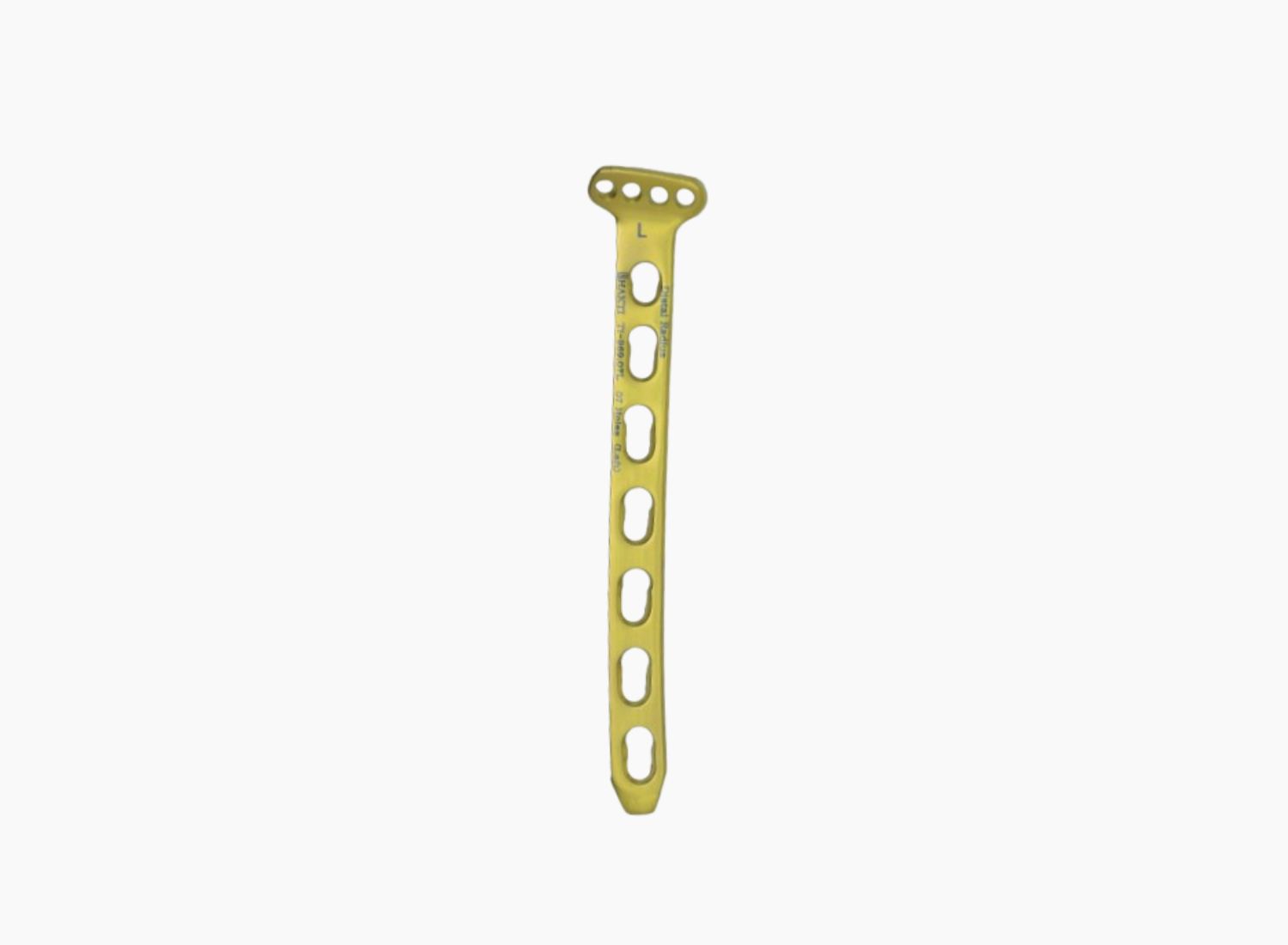

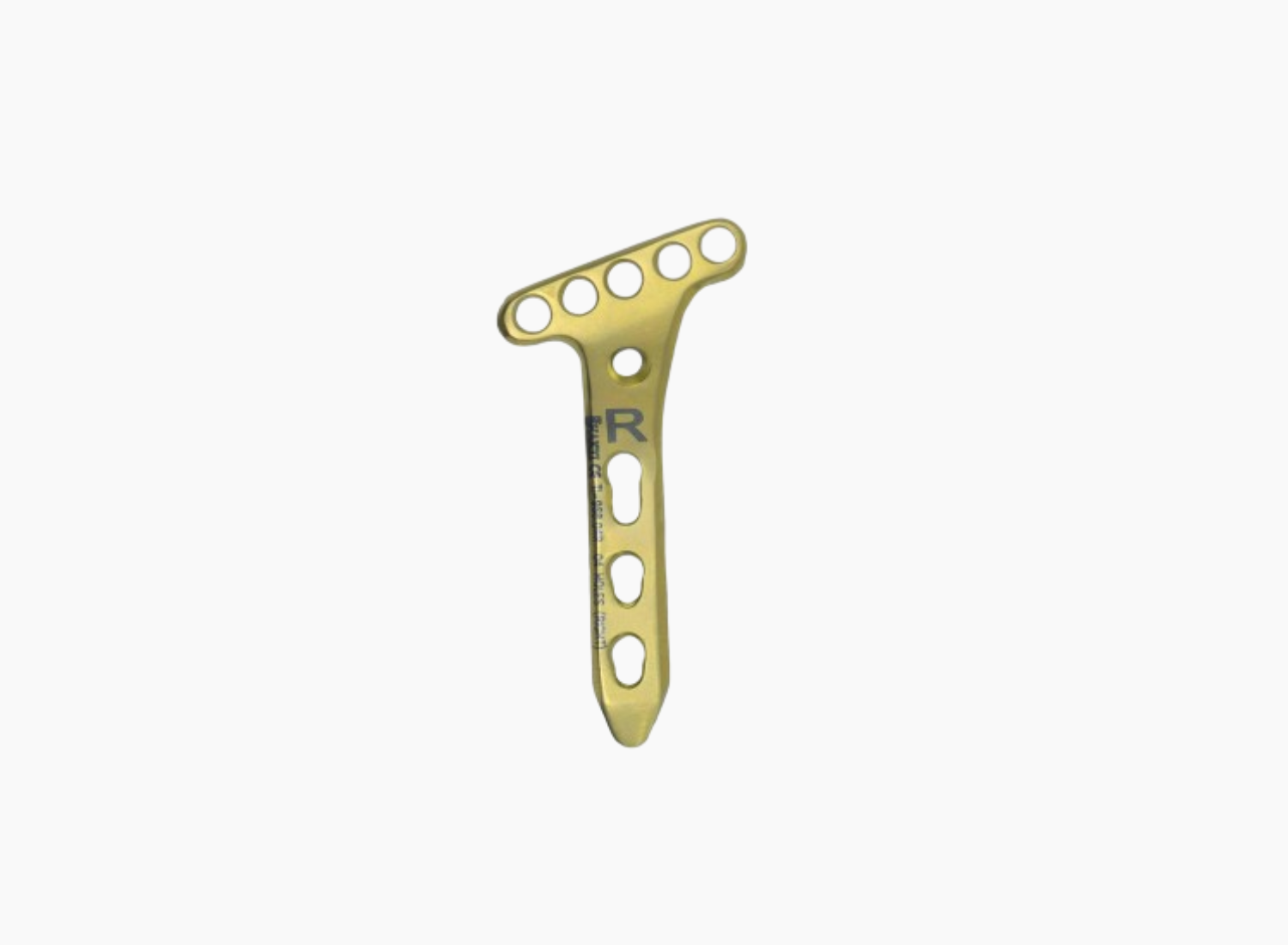

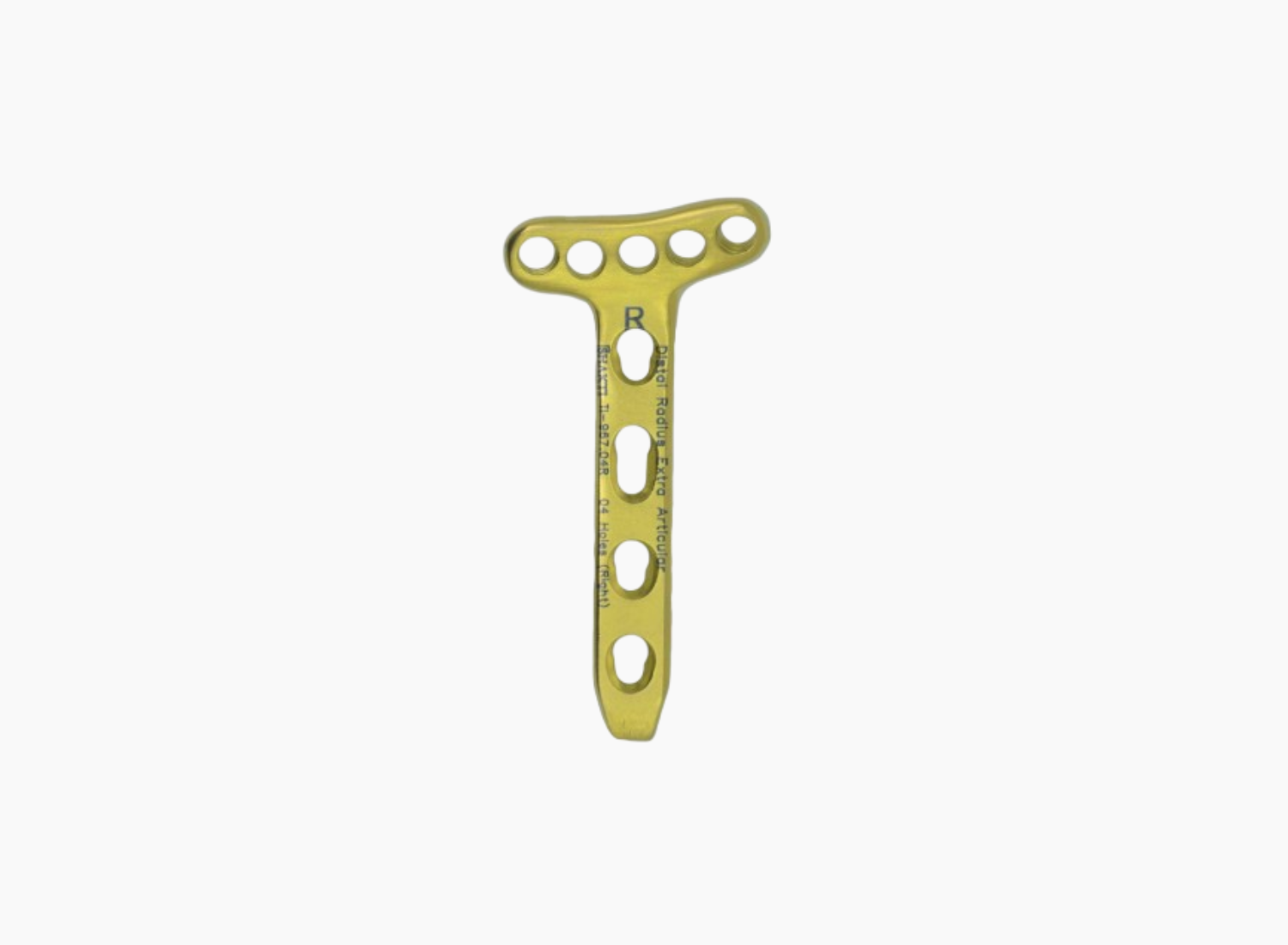

Comlok® Distal Radius Extra Articular T-Plate 2.4 / 2.7mm

Profile:

Head Width: 25 mm
Shaft Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 8.0 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm in the Shaft

Indications

For fixation of extra-articular fractures of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-967.03L to Ti-967.05L3 to 5TitaniumTi-967.03R to Ti-967.05R3 to 5
S.Steel967.03L to 967.05L3 to 5S.Steel967.03R to 967.05R3 to 5

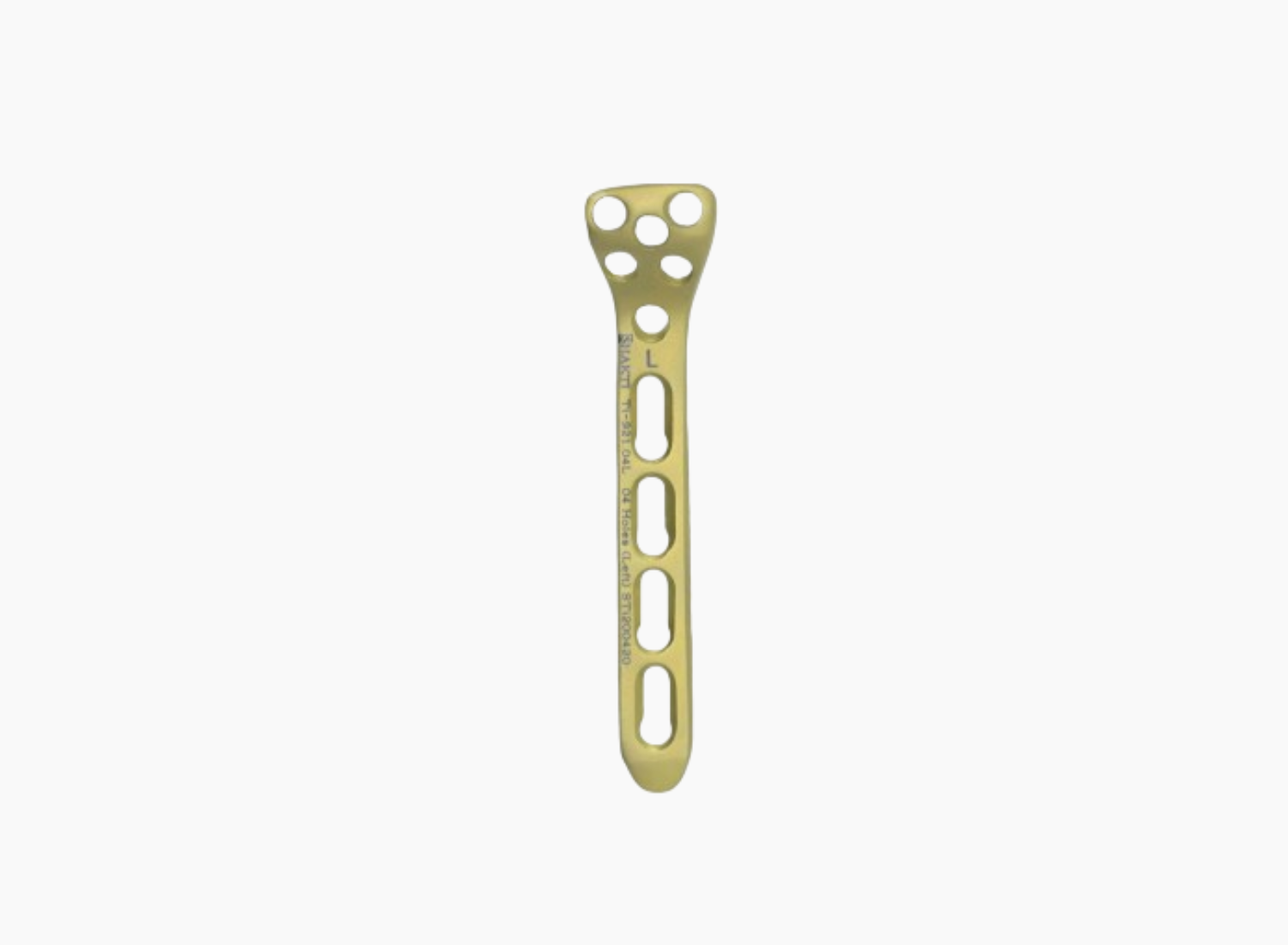

Comlok® Distal Anterior Radius Oblique T-Plate 2.4 / 2.7mm

Profile:

Head Width: 25 mm
Shaft Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 8.0 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm in the Shaft

Indications

For fixation of Intra and extra-articular fractures
of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-968.03L to Ti-968.05L3 to 5TitaniumTi-968.03R to Ti-968.05R3 to 5
S.Steel968.03L to 968.05L3 to 5S.Steel968.03R to 968.05R3 to 5

Comlok® Distal Radius Plate, Long 3.5/2.4mm

Profile:

Head Width: 22 mm
Shaft Width: 11 mm
Thickness: 2.5 mm
Holes Spacing: 13 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 3.5 mm & Comlok® Screws 3.5 mm in the Shaft

Indications

For fixation of fractures of Radial shaft including extra-articular fractures of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-969.05L to Ti-969.13L5 to 13TitaniumTi-969.05R to Ti-969.13R5 to 13
S.Steel969.05L to 969.13L5 to 13S.Steel969.05R to 969.13R5 to 13

Comlok® Radial Head Rim Plate 2.4mm

Profile:

Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 10 mm

Screws to be used

Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm

Indications

For fixation of intra-articular fractures of proximal radial head.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-921.02L to Ti-921.04L2 to 4TitaniumTi-921.02R to Ti-921.04R2 to 4
S.Steel921.02L to 921.04L2 to 4S.Steel921.02R to 921.04R2 to 4

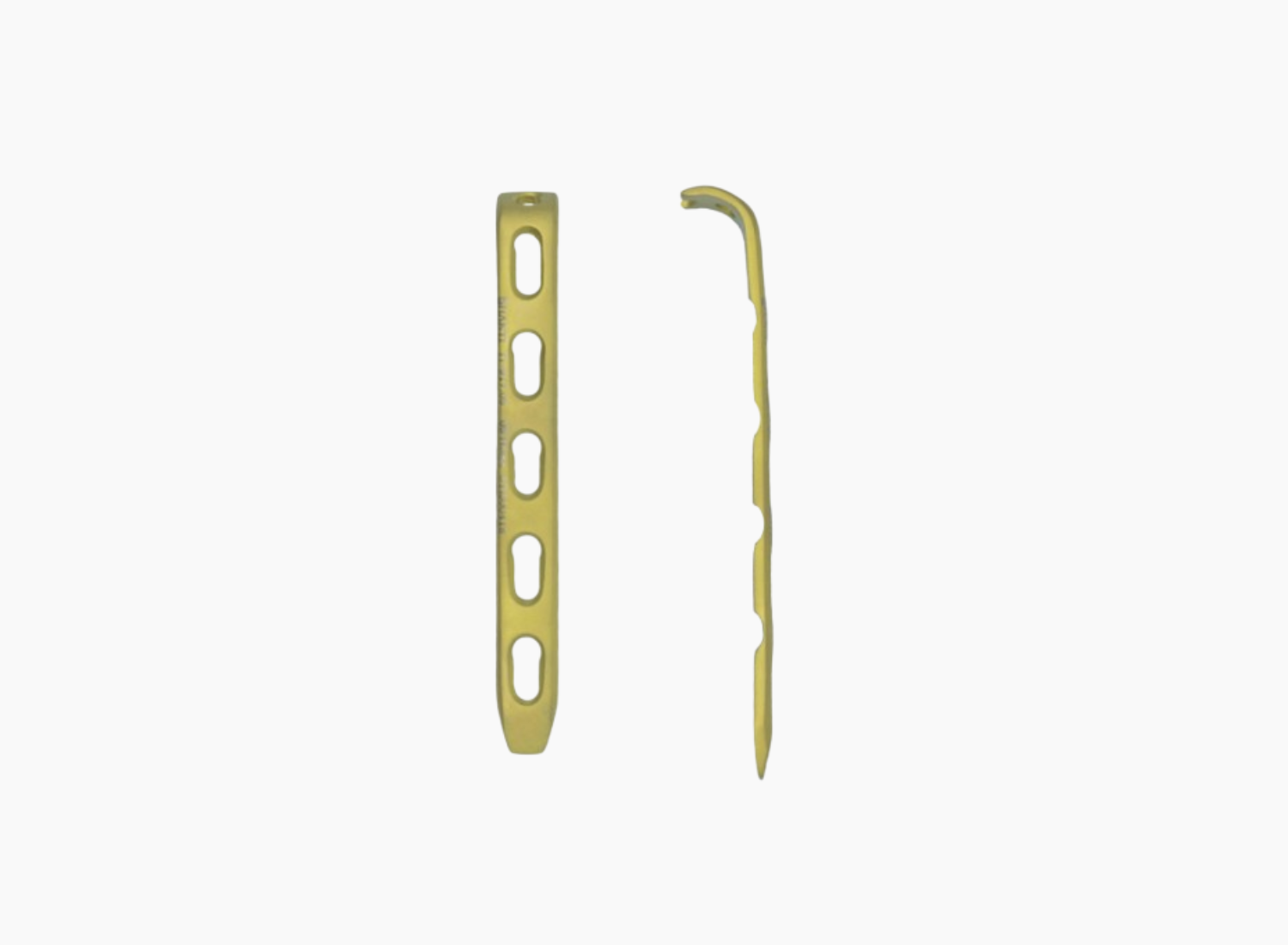

Comlok® Proximal Ulna Hook Plate 3.5mm

Profile:

Width: 11.0 mm
Thickness: 3.0 mm
Holes Spacing: 13mm

Screws to be used

Cortical Screw 3.5mm & Comlok® Screws 3.5 mm

Indications

For fixation of simple fractures and osteotomies of olecranon.

Enquire Now
Catalogue NumberHoles
S.Steel917.033

Comlok® Distal Volar Rim Plate, 2.4mm

Profile:

Head Width: 22 mm
Shaft Width: 8.0 mm
Thickness: 1.8 mm
Holes Spacing: 8.0 mm

Screws to be used

Comlok® Screws 2.4 mm in the Head
Cortical Screw 2.4 mm & Comlok® Screws 2.4 mm in the Shaft

Indications

For fixation of intra and extra-articular fractures of distal radius.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-919.65L6X5TitaniumTi-919.65R6X5
S.Steel919.65L6X5S.Steel919.65R6X5

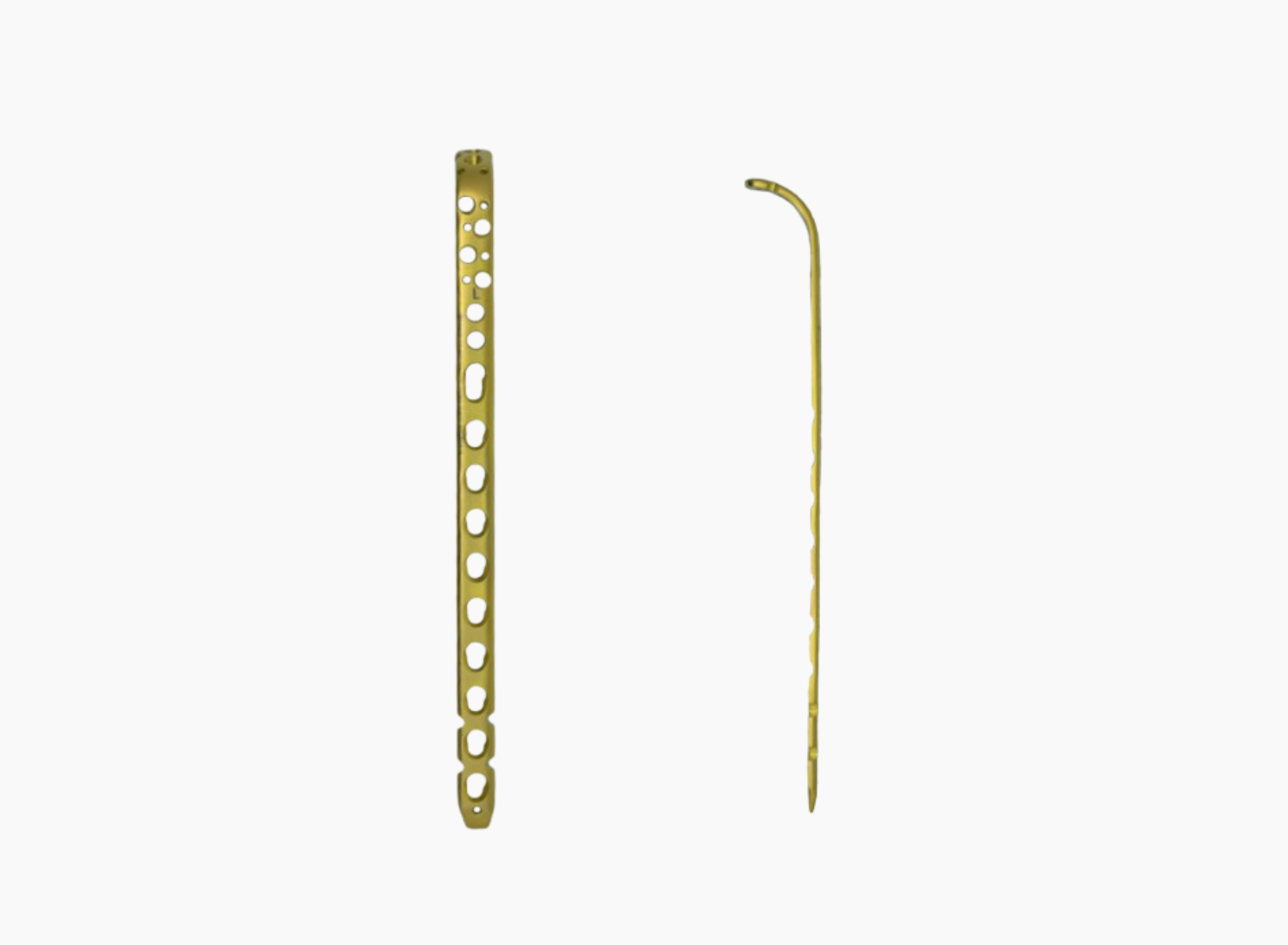

Comlok® Olecranon Plate 2.7/3.5mm

Profile:

Width: 11.5 mm
Thickness: 2.8 mm
Holes Spacing: 12 mm

Screws to be used

Comlok® Screws 2.7 mm in the Head
Cortical Screw 3.5 mm & Comlok® Screws 3.5 mm in the Shaft

Indications

For fixation of intra and extra-articular fractures of olecranon.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-957.02L to Ti-957.12L2 to 12TitaniumTi-957.02R to Ti-957.12R2 to 12
S.Steel957.02L to 957.12L2 to 12S.Steel957.02R to 957.12R2 to 12
