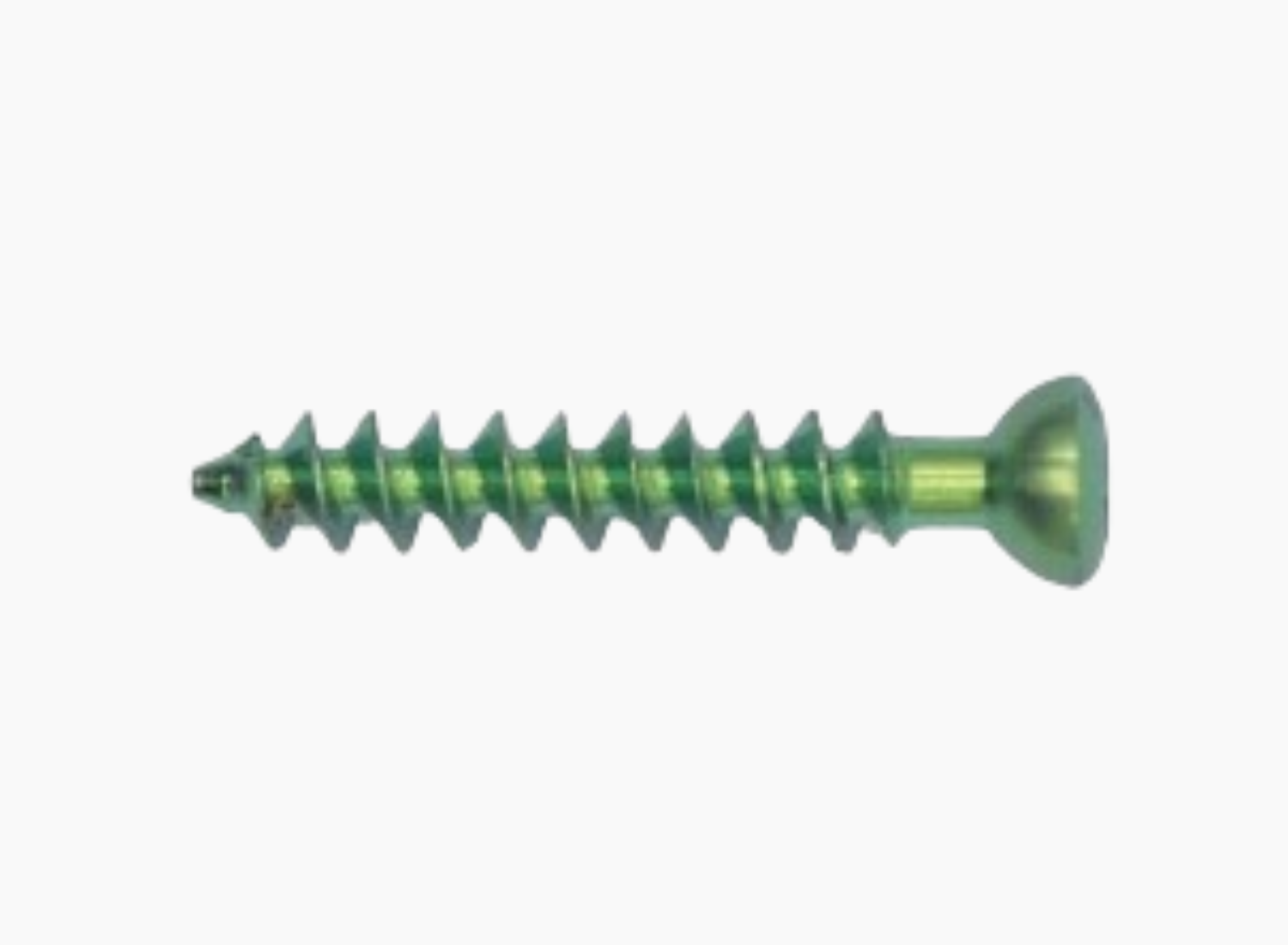

Cancellous Screws
Cancellous Screw Dia: 3.5mm
Profile:
Thread Dia: 3.5 mm
Core Dia: 1.9mm
Drill Size: 2.0 mm
Screws Driver Tip Size: 2.5 mm (Small)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-105.10 to Ti-105.60 | 10mm to 60mm |
| S.Steel | 105.10 to 105.60 | 10mm to 60mm |

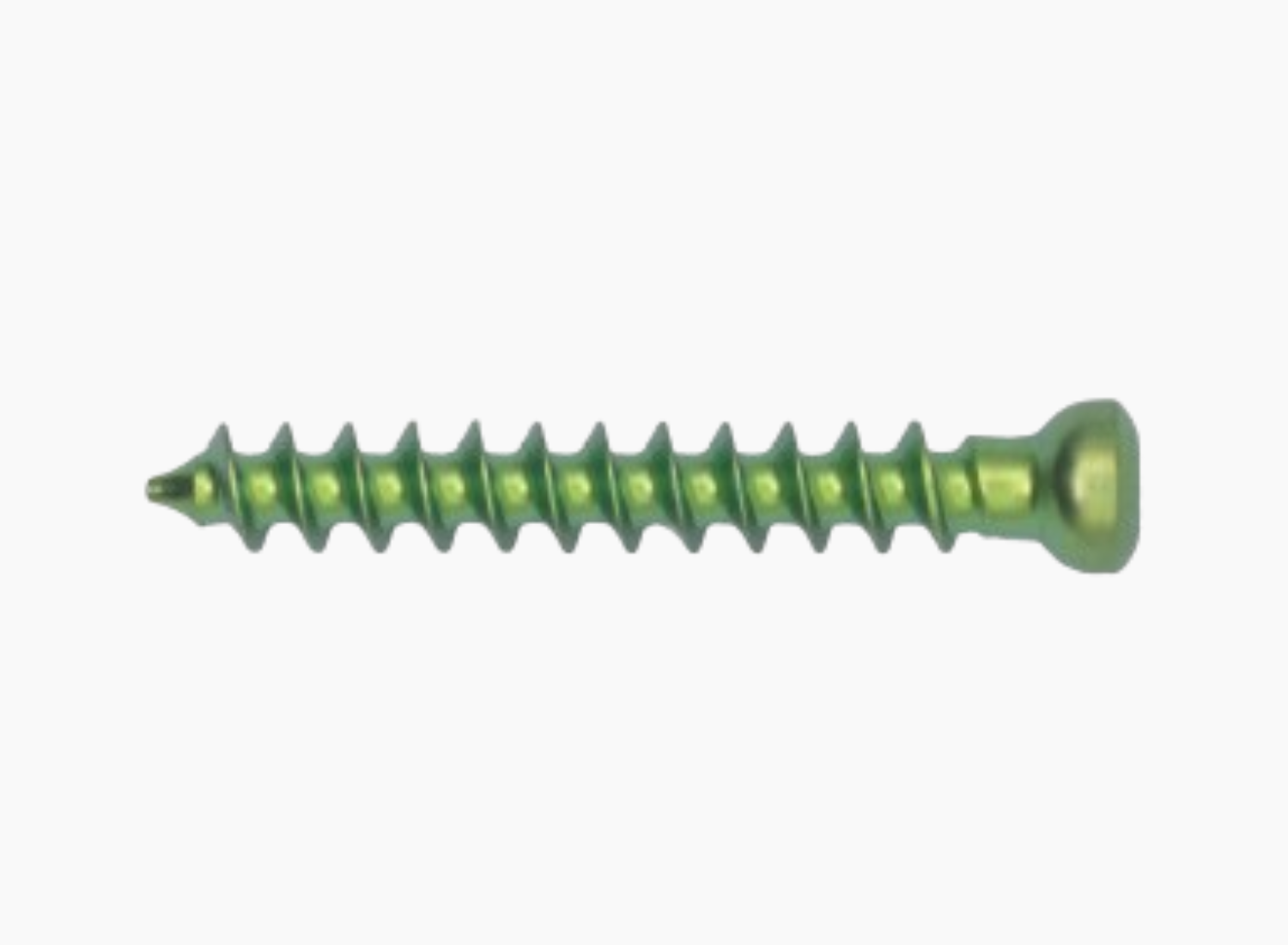

Cancellous Screws Dia: 4mm (Full Thread)
Profile
Thread Dia: 4.0 mm
Core Dia: 1.9mm
Drill Size: 2.0 mm
Screws Driver Tip Size: 2.5 mm (Small)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-106.10 to Ti-106.70 | 10mm to 70mm |
| S.Steel | 106.10 to 106.70 | 10mm to 70mm |

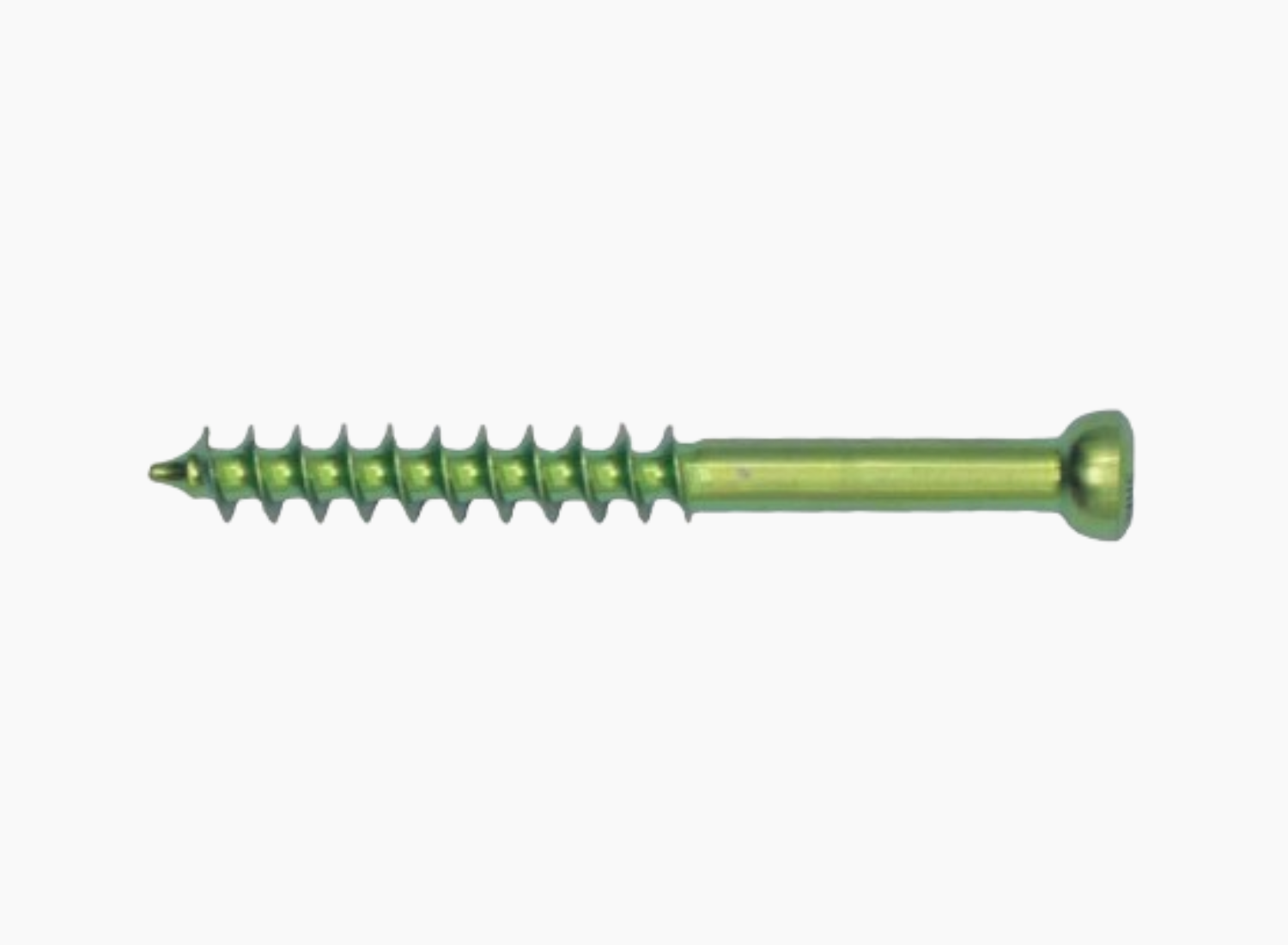

Cancellous Screws Dia: 4mm (Short Thread
Profile:
Thread Dia: 4.0 mm
Core Dia: 1.9 mm
Shaft Dia: 2.5 mm
Drill Size for threaded portion: 2.0 mm
Drill Size for gliding hole: 2.5 mm
Screws Driver Tip Size: 2.5 mm (Small)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-107.10 to Ti-107.70 | 10mm to 70mm |
| S.Steel | 107.10 to 107.70 | 10mm to 70mm |

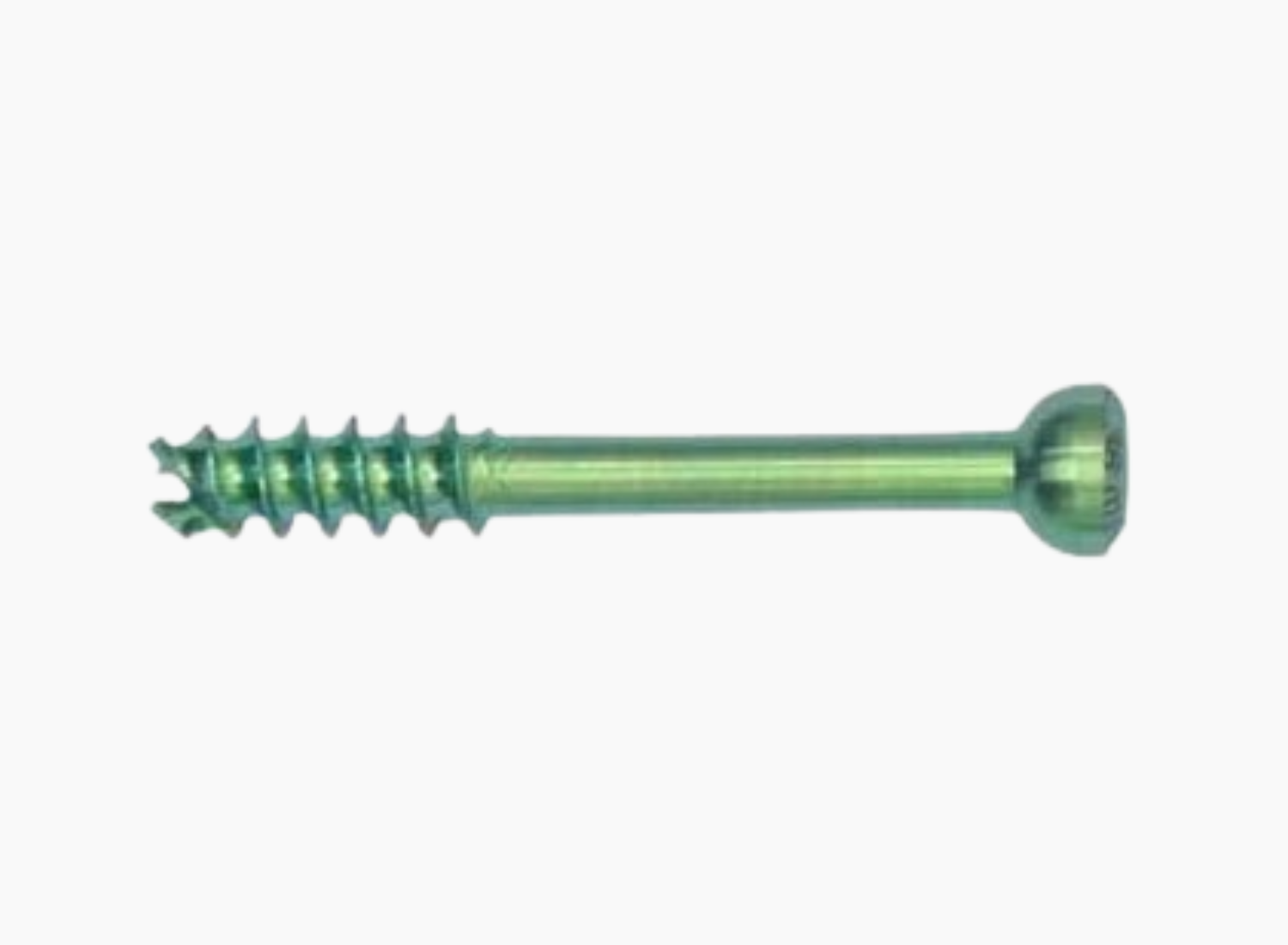

Cancellous Screws Dia: 6.5mm (16mm Thread)
Profile
Thread Dia: 6.5 mm
Core Dia: 3.0 mm
Shaft Dia: 4.5 mm
Drill Size for threaded portion: 3.2 mm
Drill Size for gliding hole: 4.5 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Thread | Length | |
|---|---|---|---|
| Titanium | Ti-108.25 to Ti-108.120 | 16 mm | 25mm to 120mm |
| S.Steel | 108.25 to 108.120 | 16 mm | 25mm to 120mm |

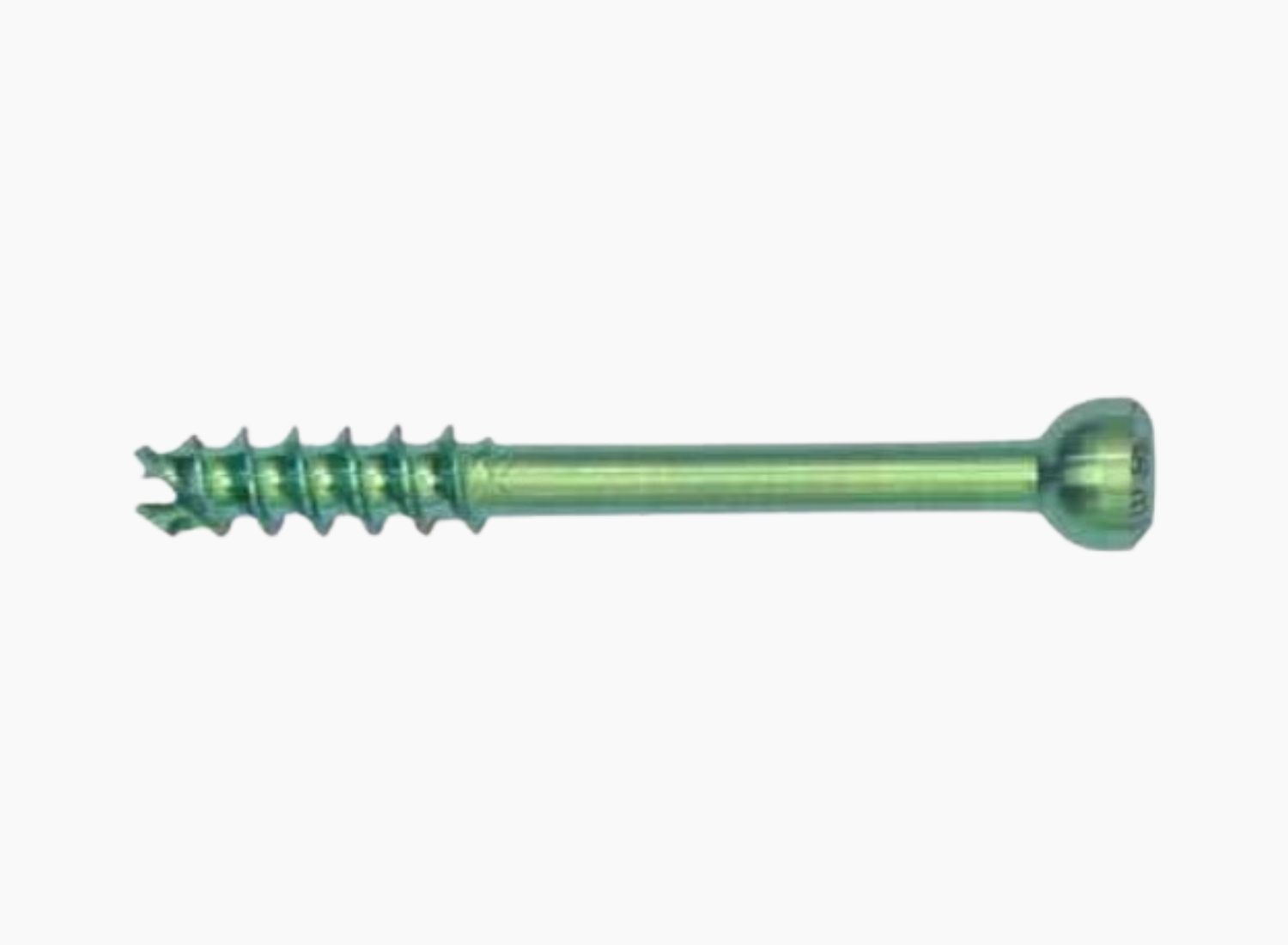

Cancellous Screws Dia: 6.5mm (32mm Thread)
Profile:
Thread Dia: 6.5 mm
Core Dia: 3.0 mm
Shaft Dia: 4.5 mm
Drill Size for threaded portion: 3.2 mm
Drill Size for gliding hole: 4.5 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-109.35 to Ti-109.120 | 35mm to 120mm |
| S.Steel | 109.35 to 109.120 | 35mm to 120mm |
Cancellous Screws Dia: 6.5mm (Full Thread)
Profile
Thread Dia: 6.5 mm
Core Dia: 3.0 mm
Drill Size: 3.2 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-110.25 to Ti-110.120 | 25mm to 120mm |
| S.Steel | 110.25 to 110.120 | 25mm to 120mm |

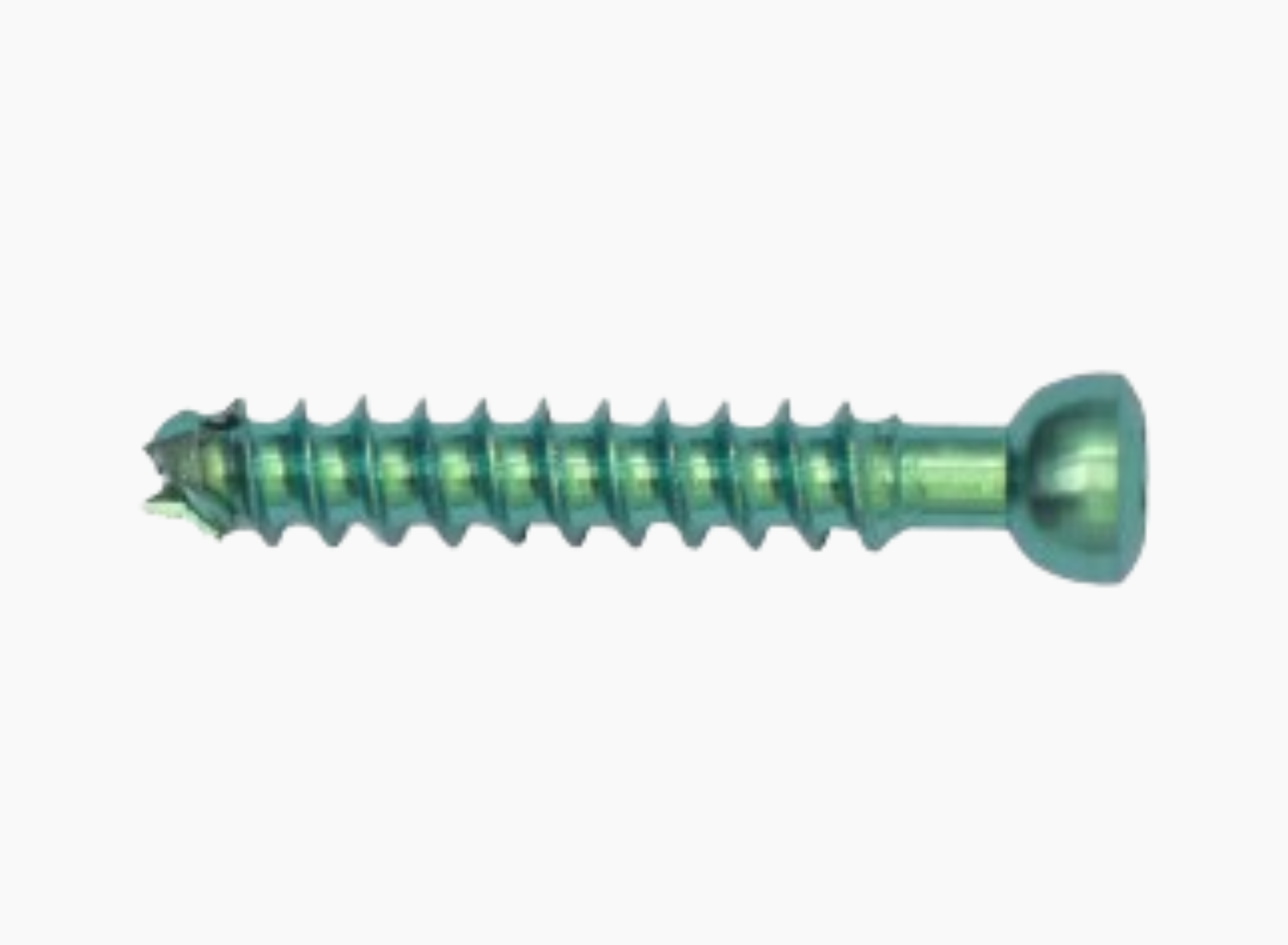

Cannulated Cancellous Screws Dia: 4.5 mm (Full Thread)
Profile:
Thread Dia: 4.5 mm
Core Dia: 3.0 mm
Drill Size 3.2 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-119.20 to Ti-119.74 | 20mm to 74mm |
| S.Steel | 119.20 to 119.74 | 20mm to 74mm |
Cannulated Cancellous Screws Dia: 4.5mm (Short Thread)
Profile
Thread Dia: 4.5 mm
Core Dia: 3.0 mm
Drill Size: 3.2 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-120.20 to Ti-120.74 | 20mm to 74mm |
| S.Steel | 120.20 to 120.74 | 20mm to 74mm |

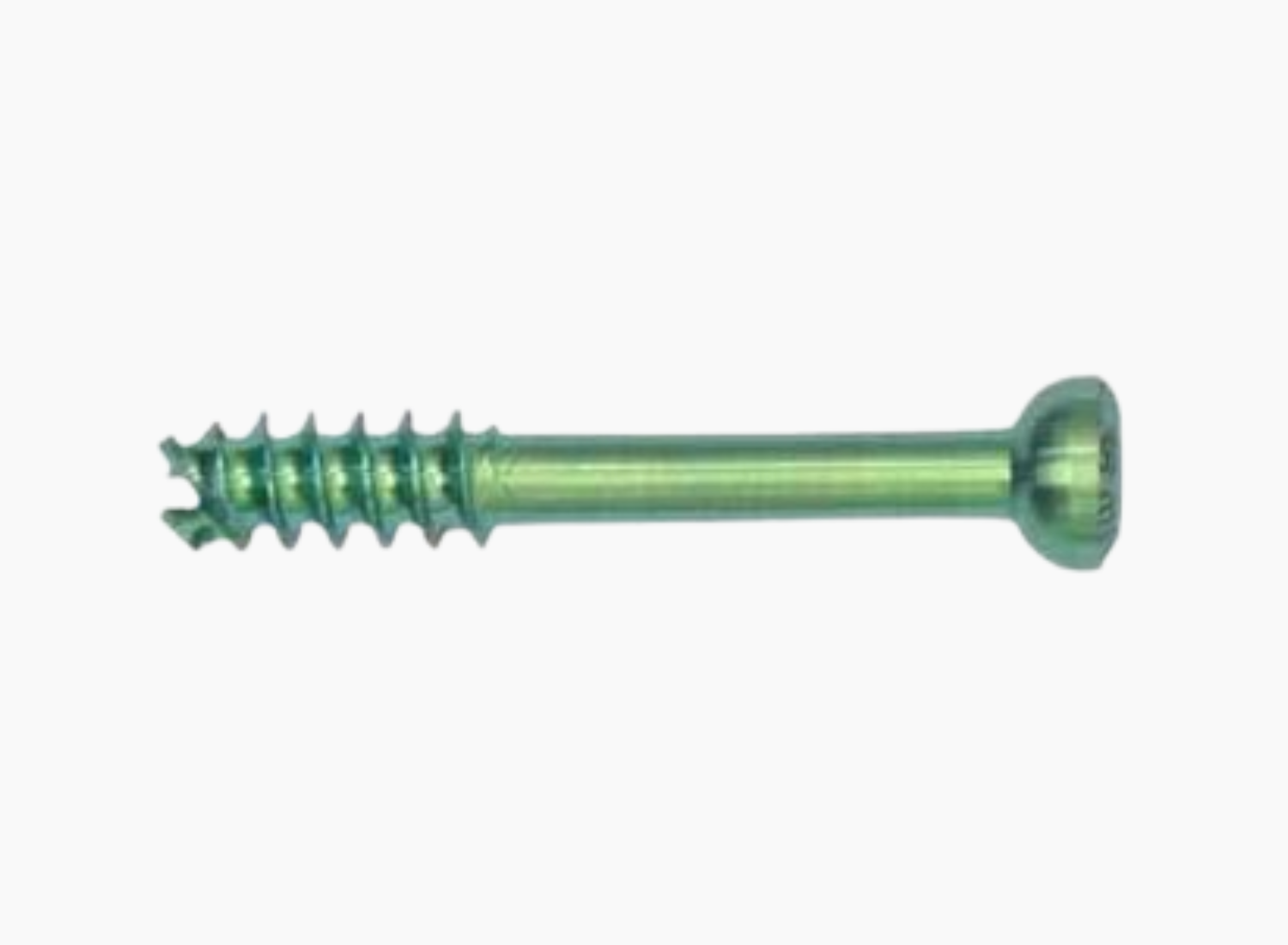

Cannulated Cancellous Screws Dia: 7mm (16mm Thread)
Profile:
Thread Dia: 7.0 mm
Core Dia: 4.5 mm
Drill Size: 4.5 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-112.30 to Ti-112.130 | 30mm to 130mm |
| S.Steel | 112.30 to 112.130 | 30mm to 130mm |
Cannulated Cancellous Screws Dia: 7mm (32mm Thread)
Profile
Thread Dia: 7.0 mm
Core Dia: 4.5 mm
Drill Size: 4.5 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| Titanium | Ti-113.35 to Ti-113.130 | 35mm to 130mm |
| S.Steel | 113.35 to 113.130 | 35mm to 130mm |
Cannulated Cancellous Screws Dia: 7mm (Full Thread)
Profile:
Thread Dia: 7.0 mm
Core Dia: 4.5 mm
Drill Size 4.5 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Catalogue Number | Length | |
|---|---|---|
| S.Steel | 114.35 to 114.130 | 35mm to 130mm |
