Tibial/Fibular Plates
Comlok® Proximal Lateral Tibia Plates 4.5/ 5.0mm
Profile:
Head Width: 25 mm
Shaft Width: 16.0 mm
Thickness: 4.5 mm
Hole Spacing: 18 mm
Screws to be used
Various options of Comlok® Screws 5.0 mm, Comlok® Cancellous Screws 5.0 mm & 6.0 mm and Non-Locking Cancellous 6.0 mm in the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft
Indications
For fixation of intra-articular, periprosthetic and
proximal tibial shaft fractures.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-940.05L to Ti-940.13L | 5 to 13 | Titanium | Ti-940.05R to Ti-940.13R | 5 to 13 |
| S.Steel | 940.05L to 940.13L | 5 to 13 | S.Steel | 940.05R to 940.13R | 5 to 13 |
Comlok® Proximal Lateral Tibia Plate 3.5mm
Profile:
Head Width: 35 mm
Shaft Width: 12.0 mm
Thickness: 3.8 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For fixation of intra-articular, periprosthetic and proximal tibial shaft fractures.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-959.04L to Ti-959.14L | 4 to 14 | Titanium | Ti-959.04R to Ti-959.14R | 4 to 14 |
| S.Steel | 959.04L to 959.14L | 4 to 14 | S.Steel | 959.04R to 959.14R | 4 to 14 |
Comlok® Proximal Lateral Tibia Plate 3.5mm (L-Shaped)
Profile:
Head Width: 35 mm
Shaft Width: 11.0 mm
Thickness: 3.3 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For fixation of split or depression fractures of lateral, central and medial tibial plateau..
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-956.04L to Ti-956.16L | 4 to 16 | Titanium | Ti-956.04R to Ti-956.16R | 4 to 16 |
| S.Steel | 956.04L to 956.16L | 4 to 16 | S.Steel | 956.04R to 956.16R | 4 to 16 |
Comlok® Proximal Lateral Tibia Plate 4.5mm (L-Shaped)
Profile:
Head Width: 35 mm
Shaft Width: 13.5 mm
Thickness: 3.3 mm
Hole Spacing: 18 mm
Screws to be used
Comlok® Screws 5.0 mm, Comlok® Cancellous Screws 5.0 mm & 6.0 mm in the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft
Indications
For fixation of split or depression fractures of lateral, central and medial tibial plateau.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-958.04L to Ti-958.14L | 4 to 14 | Titanium | Ti-958.04R to Ti-958.14R | 4 to 14 |
| S.Steel | 958.04L to 958.14L | 4 to 14 | S.Steel | 958.04R to 958.14R | 4 to 14 |
Comlok® Proximal Medial Tibia Plate 4.5mm (T-Shaped)
Profile:
Head Width: 32 mm
Shaft Width: 13.5 mm
Thickness: 3.5 mm
Hole Spacing: 18 mm
Screws to be used
Comlok® Screws 5.0 mm, Comlok® Cancellous Screws 5.0 mm & 6.0 mm in the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft
Indications
For buttressing and fixation of the metaphyseal fractures, split or associated depression fractures of medial tibial plateau.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-960.04L to Ti-960.16L | 4 to 16 | Titanium | Ti-960.04R to Ti-960.16R | 4 to 16 |
| S.Steel | 960.04L to 960.16L | 4 to 16 | S.Steel | 960.04R to 960.16R | 4 to 16 |

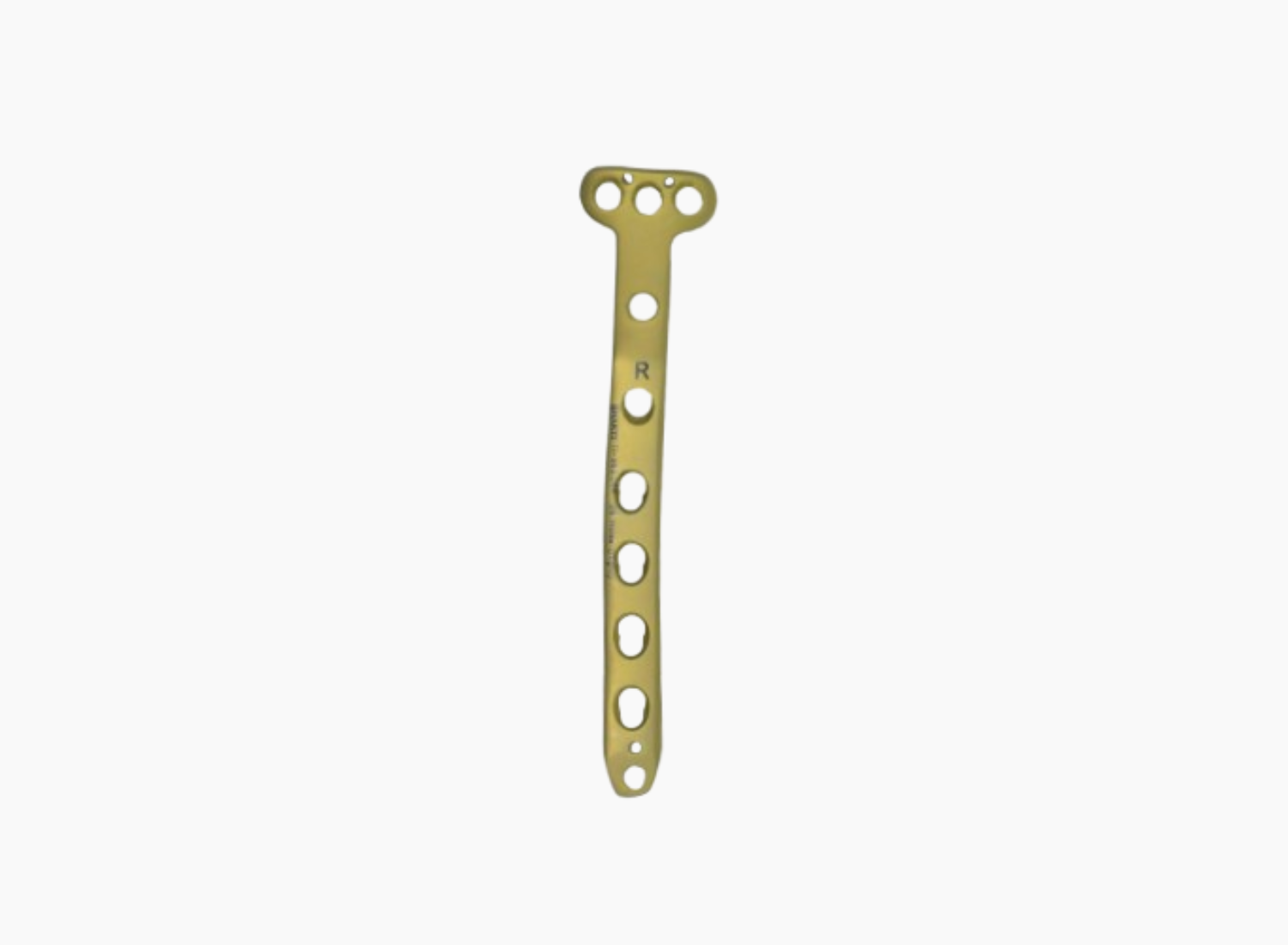

Comlok® Proximal Medial Tibia Plate 3.5mm (T-Shaped)
Profile:
Head Width: 25 mm
Shaft Width: 11.0 mm
Thickness: 3.0 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For buttressing and fixation of the metaphyseal fractures, split or associated depression fractures of medial tibial plateau
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-989.04L to Ti-989.16L | 4 to 16 | Titanium | Ti-989.04R to Ti-989.16R | 4 to 16 |
| S.Steel | 989.04L to 989.16L | 4 to 16 | S.Steel | 989.04R to 989.16R | 4 to 16 |

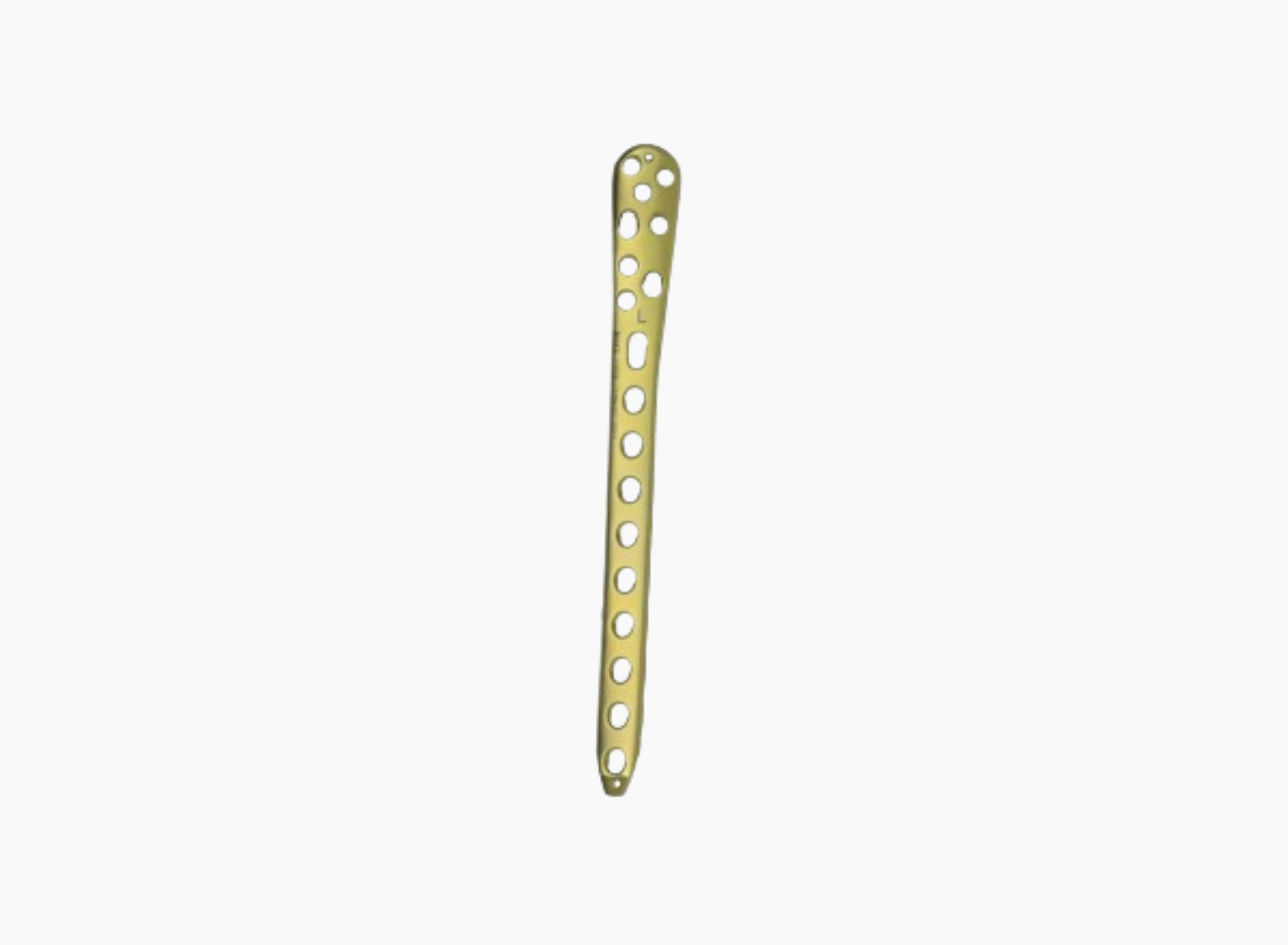

Comlok® Distal Medial Tibia Plate 3.5mm
Profile:
Head Width: 22 mm
Shaft Width: 13.5 mm
Thickness: 3.5 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For fixation of metaphyseal and extra-articular fractures of distal medial tibia.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-962.04L to Ti-962.14L | 4 to 14 | Titanium | Ti-962.04R to Ti-962.14R | 4 to 14 |
| S.Steel | 962.04L to 962.14L | 4 to 14 | S.Steel | 962.04R to 962.14R | 4 to 14 |
Comlok® Low Bend Distal Medial Tibia Plate 3.5mm
Profile:
Head Width: 22 mm
Shaft Width: 13.5 mm
Thickness: 3.5 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For fixation of intra and extra-articular fractures
and osteotomies of distal medial tibia.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-975.04L to Ti-975.14L | 4 to 14 | Titanium | Ti-975.04R to Ti-975.14R | 4 to 14 |
| S.Steel | 975.04L to 975.16L | 4 to 14 | S.Steel | 975.04R to 975.16R | 4 to 14 |
Comlok® Distal Medial Tibia Plate With Tab 3.5mm
Profile:
Head Width: 22 mm
Shaft Width: 13.5 mm
Thickness: 3.5 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Comlok® Cancellous Screws 4.0 mm in the Head
Comlok® Screws 3.5 mm & Cortical Screws 3.5 mm in the Shaft
Indications
For fixation of intra and extra-articular fractures of distal medial tibia including fractures extending into the shaft of tibia.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-977.04L to Ti-977.10L | 4 to 10 | Titanium | Ti-977.04R to Ti-977.10R | 4 to 10 |
| S.Steel | 977.04L to 977.10L | 4 to 10 | S.Steel | 977.04R to 977.10R | 4 to 10 |
Comlok® Antero Lateral Distal Tibia Plate 3.5mm
Profile:
Shaft Width: 12 mm
Head Width: 38 mm
Plate Thickness: 3.5 mm
Head Thickness: 2.8 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Comlok® Cancellous Screws 4.0 in the Head
Comlok® Screws 3.5 mm & Cortical 3.5 mm in the Shaft
Indications
For fixation of intra and extra-articular fractures of distal medial tibia including fractures extending into the shaft of tibia.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-963.05L to Ti-963.19L | 5 to 19 | Titanium | Ti-963.05R to Ti-963.19R | 5 to 19 |
| S.Steel | 963.05L to 963.19L | 5 to 19 | S.Steel | 963.05R to 963.19R | 5 to 19 |
Comlok® Metaphyseal Plate 3.5/4.5/5.0 mm
Profile:
Shaft Width: 13.5 mm
Thickness: 4.0 mm
Hole Spacing: 18/11 mm
Screws to be used
Comlok® Screws 3.5 mm, Cortical 3.5 mm & Comlok® Cancellous Screws 4.0 mm in the first five holes
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft
Indications
For fixation of metaphyseal fractures of distal medial tibia including fractures extending into the shaft of tibia.
| Catalogue Number | Holes | |
|---|---|---|
| Titanium | Ti-909.04 to Ti-909.16 | 4 to 16 |
| S.Steel | 909.04 to 909.16 | 4 to 16 |
Comlok® Metaphyseal Plates 3.5mm
Profile:
Shaft Width: 11 mm
Thickness: 3.0 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm, Cortical 3.5 mm & Comlok® Cancellous Screws 4.0 mm
Indications
For fixation of metaphyseal fractures of distal medial tibia including fractures extending into the shaft of tibia.
| Catalogue Number | Holes | |
|---|---|---|
| Titanium | Ti-914.06 to Ti-914.16 | 6 to 16 |
| S.Steel | 914.06 to 914.06 | 6 to 16 |
Comlok® Proximal Posterior Medial Tibia Plate 3.5mm
Profile:
Head Width: 19 mm
Shaft Width: 11.0 mm
Thickness: 3.0 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Comlok® Cancellous Screws 4.0 in the Head
Comlok® Screws 3.5 mm & Cortical 3.5 mm in the Shaft
Indications
For fixation of posteriomedial proximal tibia fractures. Also used for buttressing of fractures of metaphyseal and proximal regions of tibia.
| S.Steel | 978.02 - 978.10 | 2 - 10 |
|---|---|---|
| Titanium | Ti-978.02 - Ti-978.10 | 2 - 10 |
Comlok® Distal Lateral Fibula Plate 3.5mm
Profile:
Head Width: 16 mm
Shaft Width: 10.0 mm
Thickness: 3.0 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Comlok® Cancellous Screws 4.0 in the Head
Comlok® Screws 3.5 mm & Cortical 3.5 mm in the Shaft
Indications
For fixation of fractures and osteotomies of metaphyseal and diaphyseal regions of distal fibula including osteopenic bones.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-979.03L to Ti-979.11L | 3 to 11 | Titanium | Ti-979.03R to Ti-979.11R | 3 to 11 |
| S.Steel | 979.03L to 979.11L | 3 to 11 | S.Steel | 979.03R to 979.11R | 3 to 11 |
