Femoral Plates

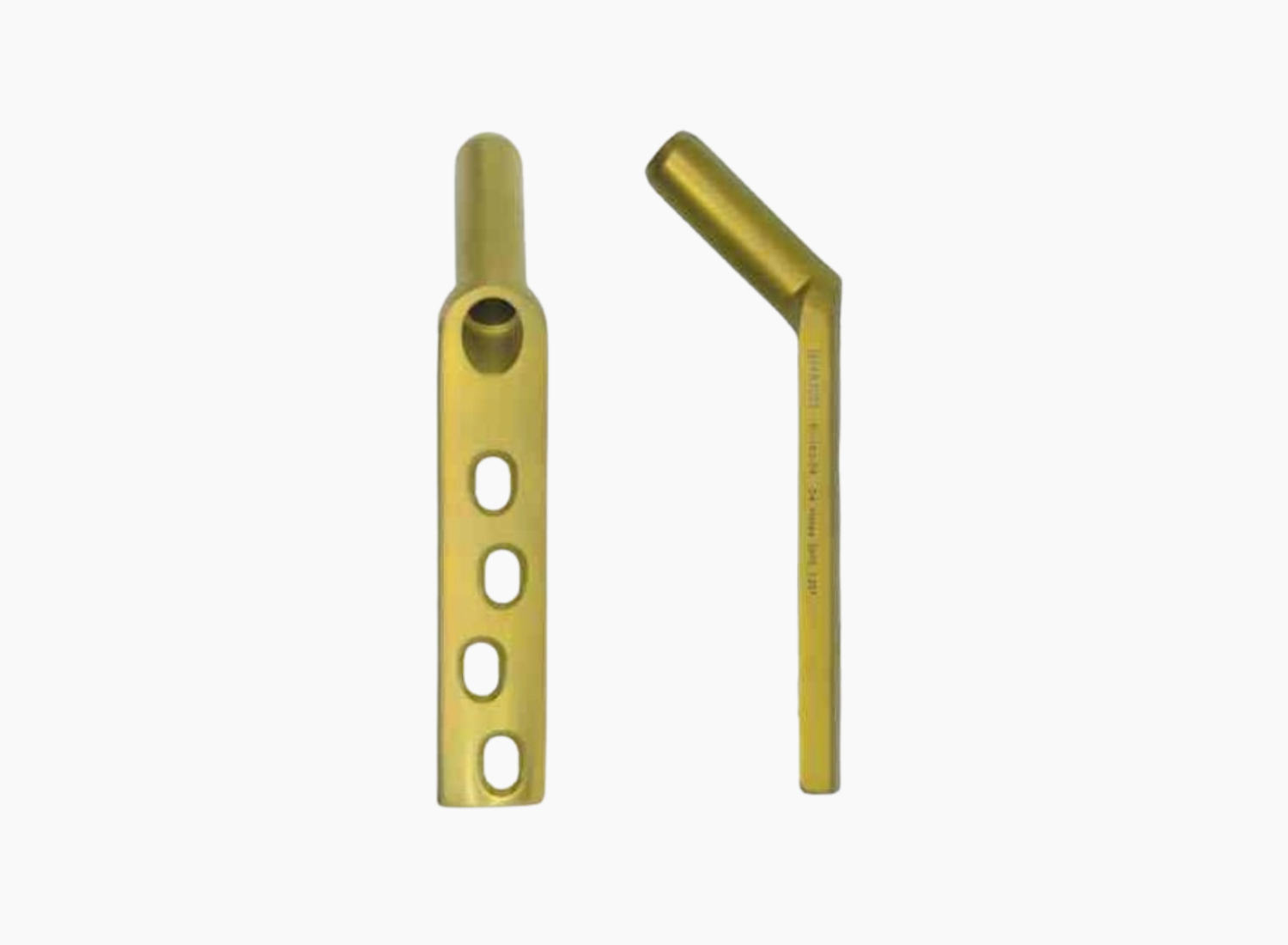

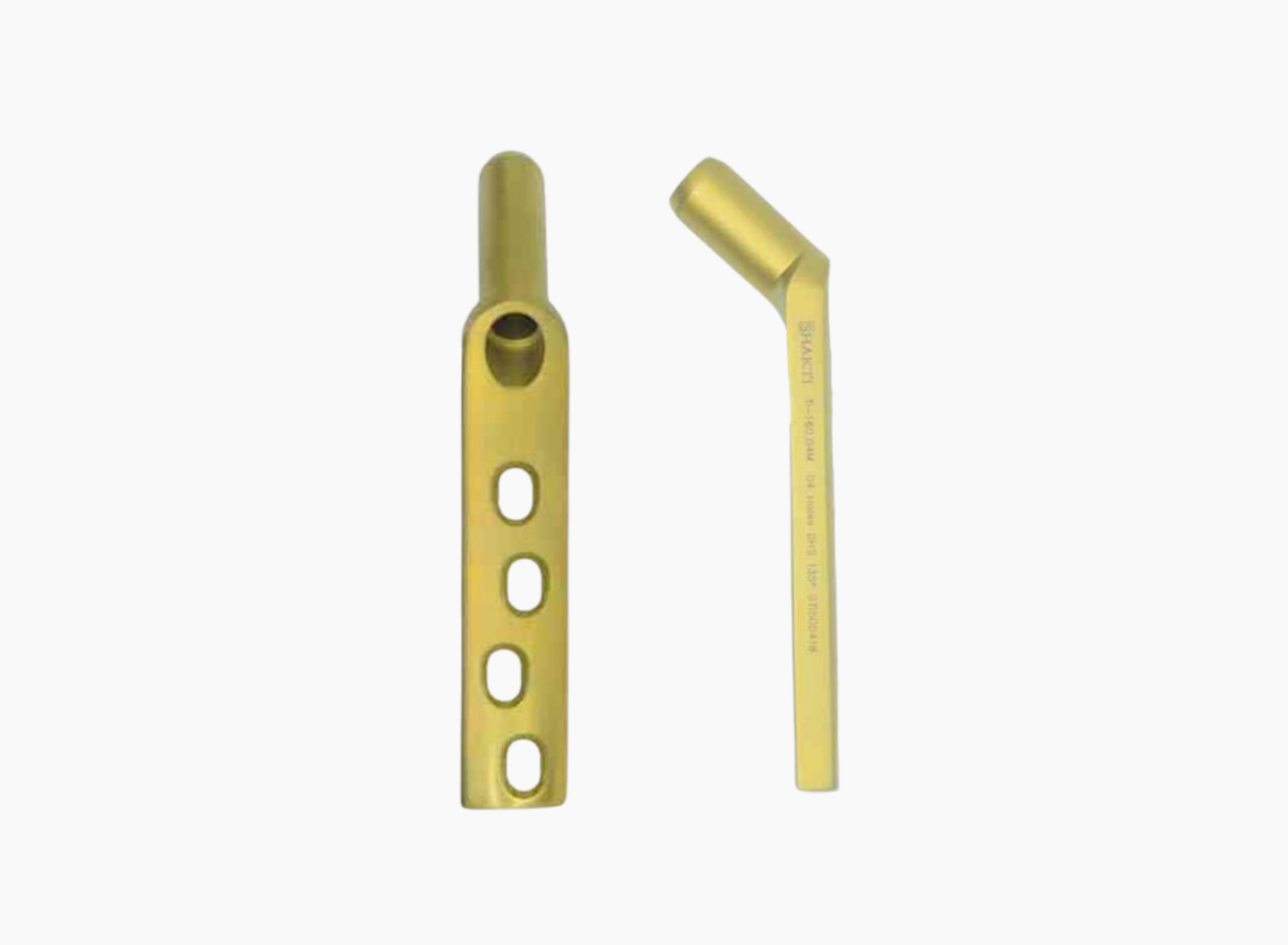

DHS Standard Barrel Plates 135° with 'DC' Holes

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 38 mm
Hole Spacing: 18 mm

Screws to be used

Cortical Screws 4.5 mm
DHS Lag Screw 12.5 mm

Indications

For fixation of pertrochanteric and intertrochanteric fractures of
proximal femur.

Enquire Now
Barrel AngleCatalogue NumberHoles
Titanium135°Ti-160.02 to Ti-160.182 to 18
S.Steel135°160.02 to 160.182 to 18
Titanium130°Ti-160.02C to Ti-160.18C2 to 18
S.Steel130°160.02C to 160.18C2 to 18
Titanium145°Ti-160.02D to Ti-160.18D2 to 18
S.Steel145°160.02D to 160.18D2 to 18

DHS Mini Barrel Plates 135° with 'DC' Holes

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 25 mm
Hole Spacing: 18 mm

Screws to be used

Cortical Screws 4.5 mm
DHS Lag Screw 12.5 mm

Indications

For fixation of pertrochanteric and intertrochanteric fractures of
proximal femur.

Enquire Now
Barrel AngleCatalogue NumberHoles
Titanium135°Ti-160.02M to Ti-160.18M2 to 18
S.Steel135°160.02M to 160.18M2 to 18
Titanium130°Ti-160.02MC to Ti-160.18MC2 to 18
S.Steel130°160.02MC to 160.18MC2 to 18
Titanium145°Ti-160.02MD to Ti-160.18MD2 to 18
S.Steel145°160.02MD to 160.18MD2 to 18

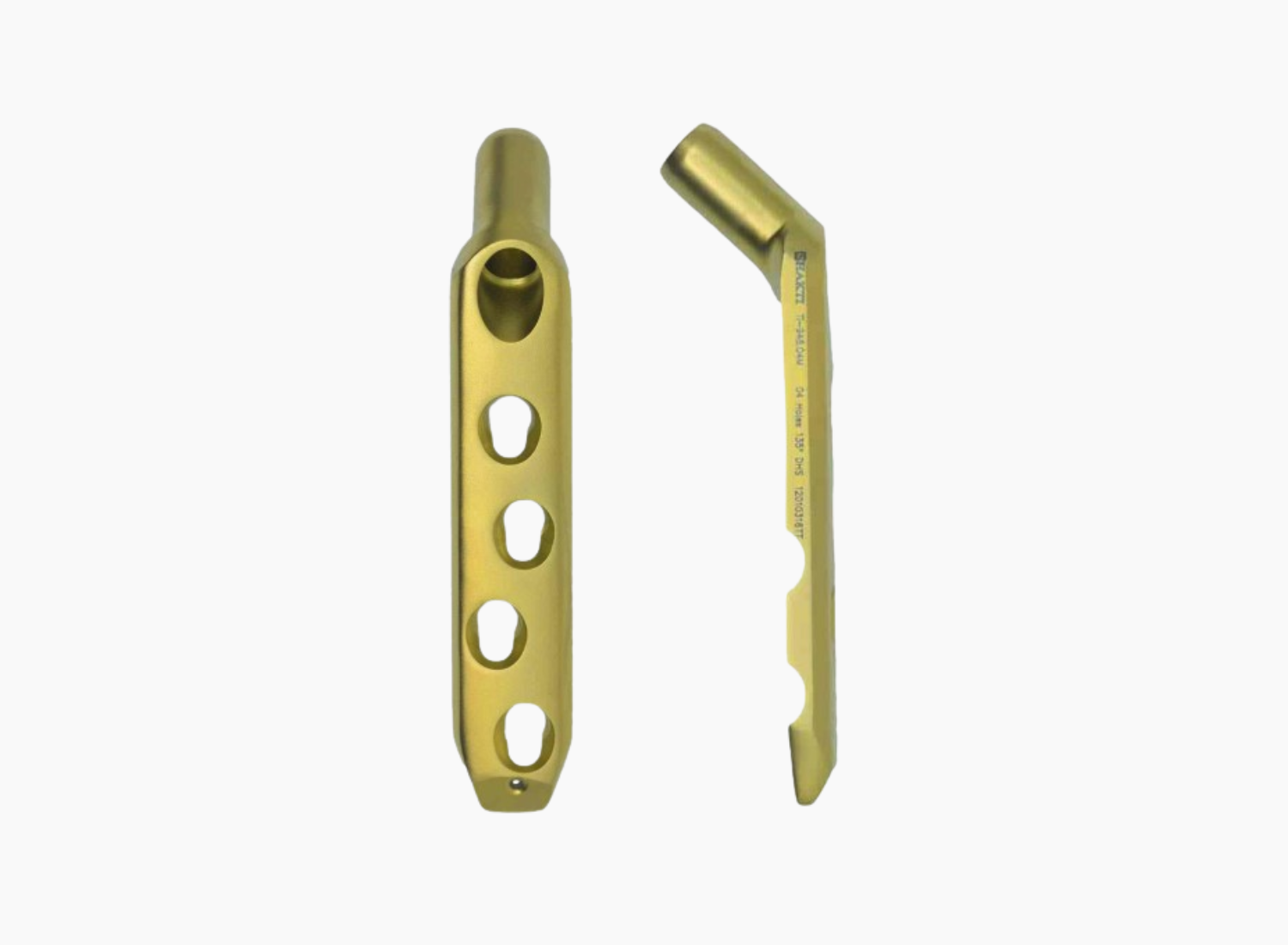

Comlok® DHS Standard Barrel Plate 135°

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 38 mm
Hole Spacing: 18 mm

Screws to be used

Lag Screw 12.5mm used in the Barrel Hole.
Comlok® Screw 5mm & Cortical Screw 4.5mm used in Shaft.

Indications

For fixation of pertrochanteric and intertrochanteric fractures of proximal femur.

Enquire Now
Barrel AngleCatalogue NumberHoles
Titanium135°Ti-948.02 to Ti-948.182 to 18
S.Steel135°948.02 to 948.182 to 18
Titanium130°Ti-948.02A to Ti-948.18A2 to 18
S.Steel130°948.02A to 948.18A2 to 18
Titanium140°Ti-948.02B to Ti-948.18B2 to 18
S.Steel140°948.02B to 948.18B2 to 18

Comlok® DHS MINI Barrel Plate 135°

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 25 mm
Hole Spacing: 18 mm

Screws to be used

Lag Screw 12.5mm used in the Barrel Hole.
Comlok® Screw 5mm & Cortical Screw 4.5mm used in Shaft.

Indications

For fixation of pertrochanteric and intertrochanteric fractures of
proximal femur.

Enquire Now
Catalogue NumberHoles
TitaniumTi-948.02M to Ti-948.10M2 to 10
S.Steel948.02M to 948.10M2 to 10

Comlok® DCS Barrel Plate 95°

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 25 mm
Hole Spacing: 18 mm

Screws to be used

Lag Screw 12.5mm used in the Barrel Hole.
Comlok® Screw 5mm & Cortical Screw 4.5mm used in Shaft.

Indications

For fixation of condylar fractures of distal femur.

Enquire Now
Catalogue NumberHoles
TitaniumTi-985.06 to Ti-985.166 to 16
S.Steel985.06 to 985.166 to 16

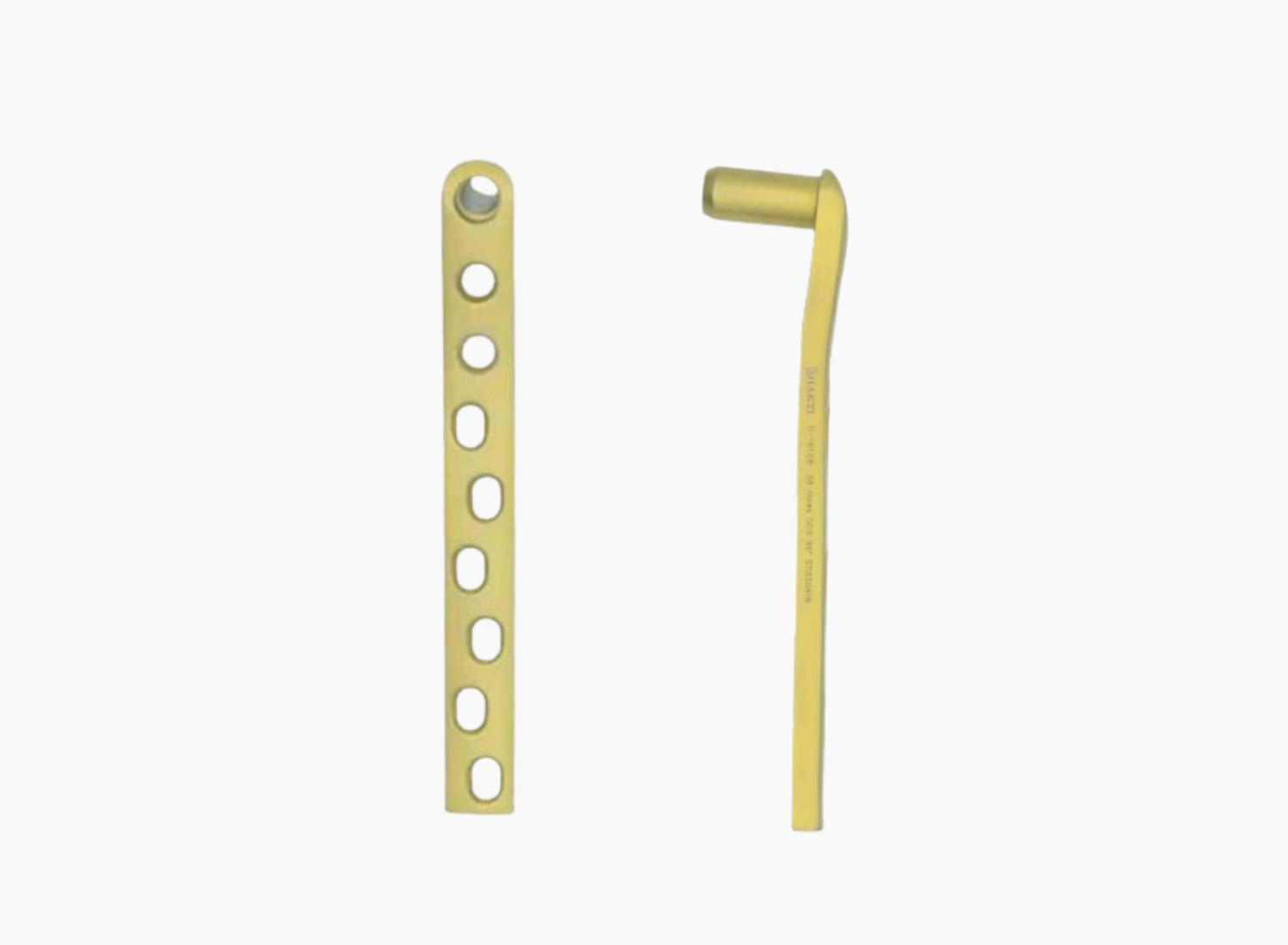

DCS Barrel Plates 95° with 'DC' Holes

Profile:

Thickness: 6.0 mm
Width; 17.5 mm
Barrel Length: 25 mm
Hole Spacing: 18 mm

Screws to be used

Lag Screw 12.5mm in the Barrel Hole.
Cortical Screw 4.5mm in the Shaft.

Indications

For fixation of condylar fractures of distal femur.

Enquire Now
Catalogue NumberHoles
TitaniumTi-161.06 to Ti-161.166 to 16
S.Steel161.06 to 161.166 to 16

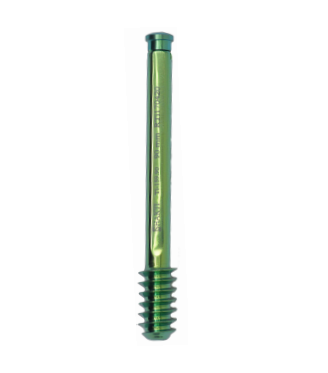

DHS / DCS Lag Screws

Profile:

Thread Diameter: 12.5 mm
Core Diameter: 8.0 mm
Shaft Diameter: 8.0 mm
Screw Length: 30 mm to 130 mm

Enquire Now
Catalogue NumberLength
TitaniumTi-159.50 to Ti-159.12050mm to 120mm
S.SteelTi-159.50 to Ti-159.12050mm to 120mm

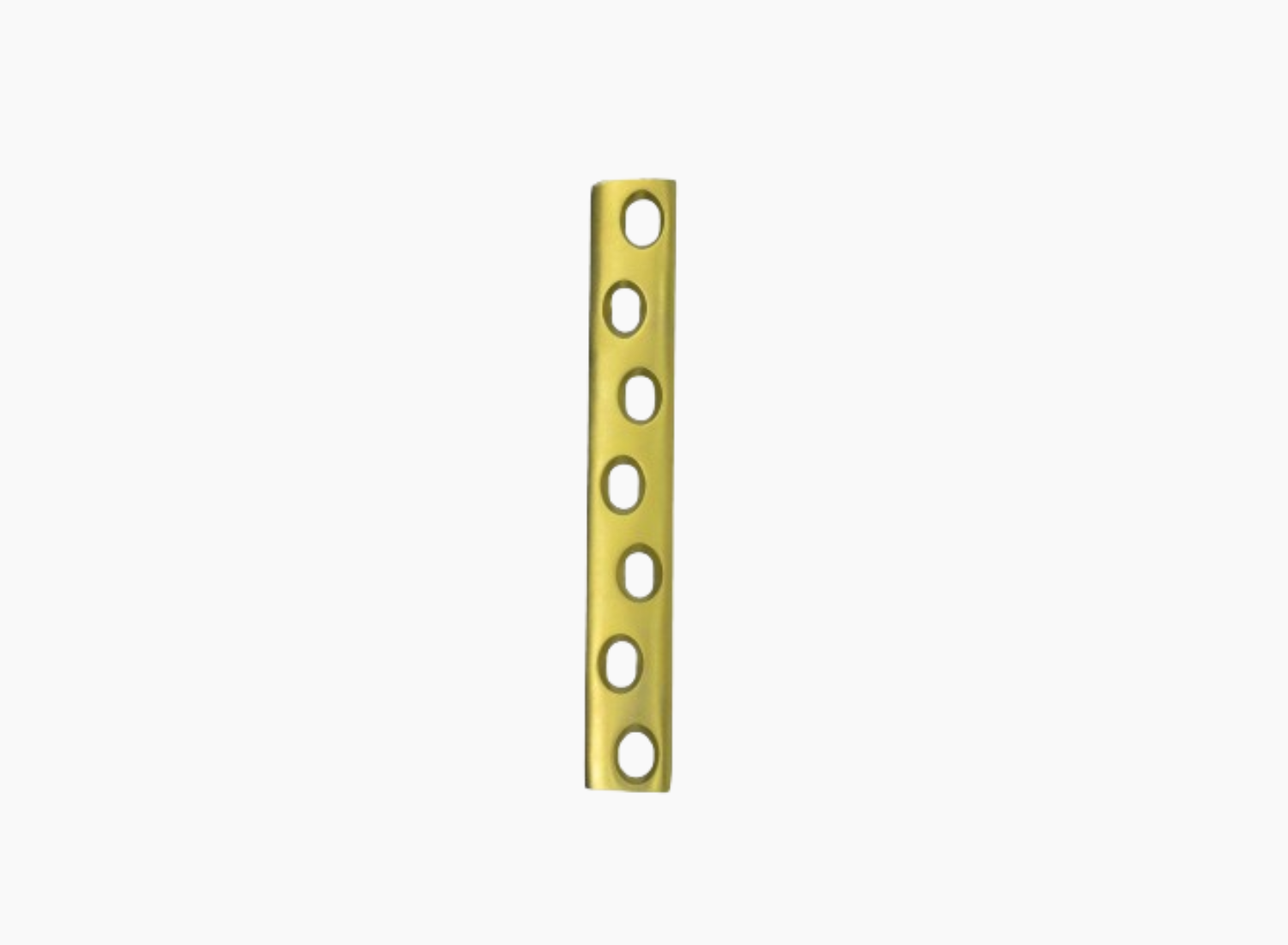

Dynamic Compression Plates (DCP), Broad, 4.5 mm

Profile:

Width: 16 mm
Thickness: 4.8 mm
Hole Spacing: 18 mm

Screws to be used

Cortical Screws 4.5 mm & Cancellous
Screws 6.5 mm

Indications

For fixation of fractures of femoral shaft

Enquire Now
Catalogue NumberHoles
TitaniumTi-153.04 to Ti-153.184 to 18
S.Steel153.04 to 153.184 to 18

Comlok® Broad Plate 4.5/5.0 mm

Profile:

Width: 17.5 mm
Thickness: 5.2 mm
Hole Spacing: 18 mm

Screws to be used

Comlok® Screws 5.0 mm, Cortical Screws 4.5 mm
& Cancellous Screws 6.5 mm

Indications

For fixation of fractures of femoral shaft.

Enquire Now
Catalogue NumberHoles
TitaniumTi-932.05 to Ti-932.165 to 16
S.Steel932.05 to 932.165 to 16

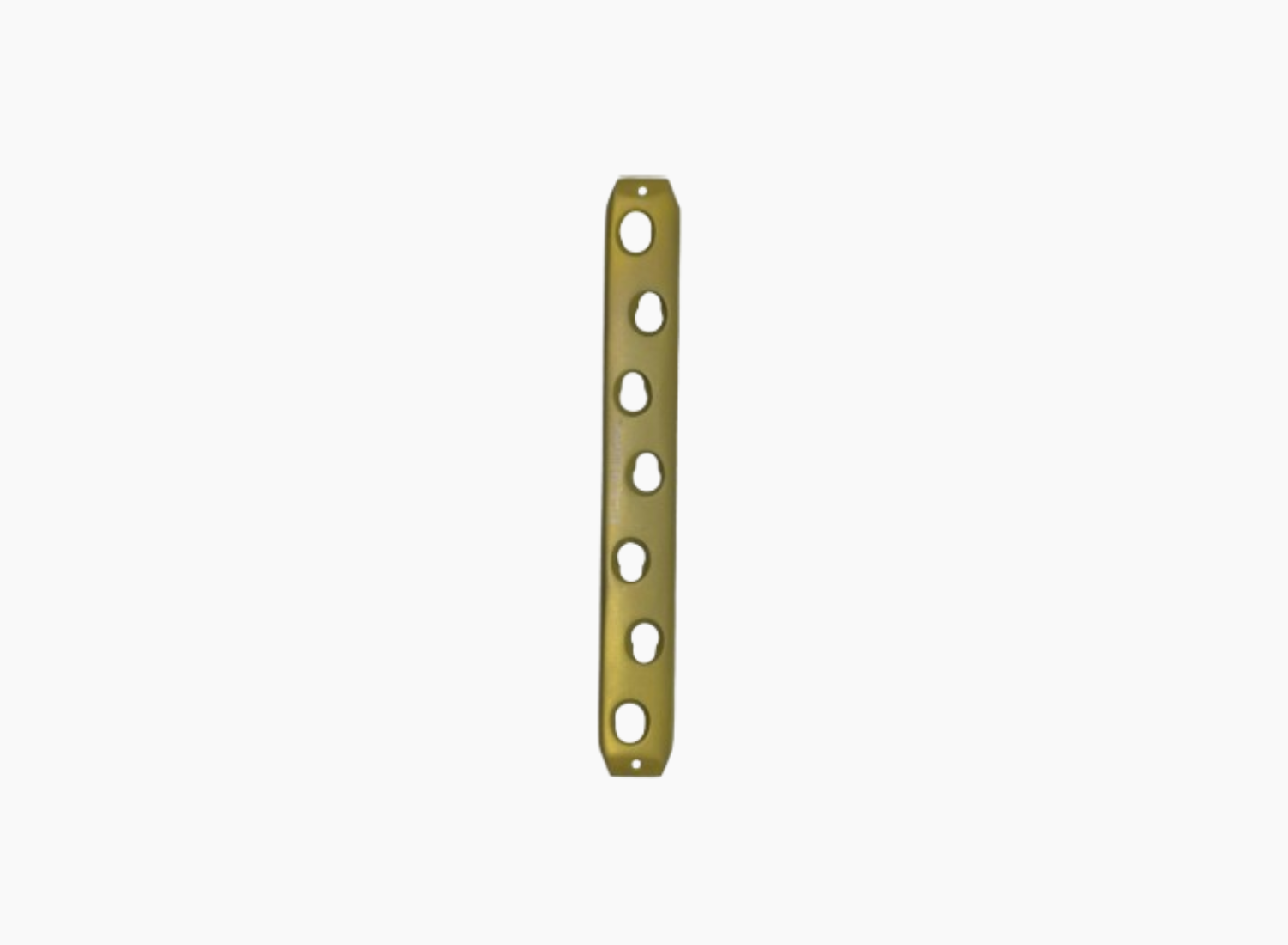

LcDCP (Limited Contact DC Plates) Broad

Profile:

Width: 17.5 mm
Thickness: 5.2 mm
Hole Spacing: 18 mm

Screws to be used

Cortical Screws 4.5 mm & Cancellous
Screws 6.5 mm

Indications

For fixation of fractures of femoral
shaft.

Enquire Now
Catalogue NumberHoles
TitaniumTi-249.05 to Ti-249.185 to 18
S.Steel249.05 to 249.185 to 18

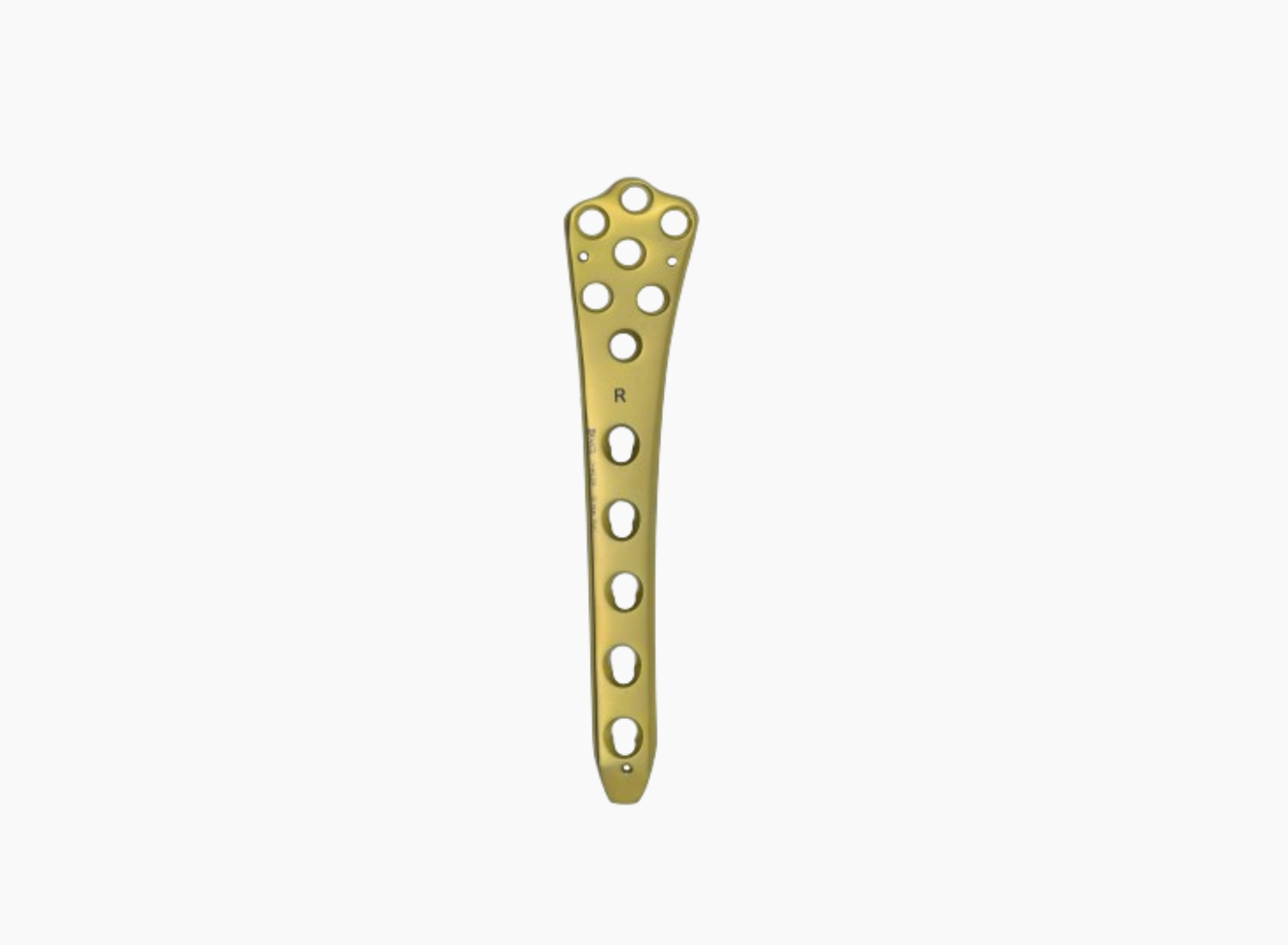

Comlok® Condylar Buttress Plate

Profile:

Head Width: 38 mm
Width: 17.5 mm
Thickness: 5.5 mm
Hole Spacing: 18 mm

Screws to be used

Various options of Comlok® Screws 5.0 mm, Comlok® Cancellous Screws 5.0 mm & 6.0 mm and Non-Locking Cancellous 6.0 mm in the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft

Indications

For fixation of supracondylar, intra and extraarticular condylar fractures including osteopenic bone.
Buttressing of distal femur fractures.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-945.06L to Ti-945.16L6 to 16TitaniumTi-945.06R to Ti-945.16R6 to 16
S.Steel945.06L to 945.16L6 to 16S.Steel945.06R to 945.16R6 to 16

Comlok® Proximal Femur Plate 4.5/5.0mm

Profile:

Width: 17.5 mm
Thickness: 5.5 mm
Hole Spacing: 18 mm

Screws to be used

Comlok® Cannulated 7.0 mm in the first two holes and Comlok® Screws 5.0 mm in the third hole of the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft

Indications

For fixation of fractures of trochanteric region including inter-trochanteric, pertrochanteric, transverse and fractures extending into the shaft of femur.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-953.02L to Ti-953.16L2 to 16TitaniumTi-953.02R to Ti-953.16R2 to 16
S.Steel953.02L to 953.16L2 to 16S.Steel953.02R to 953.16R2 to 16

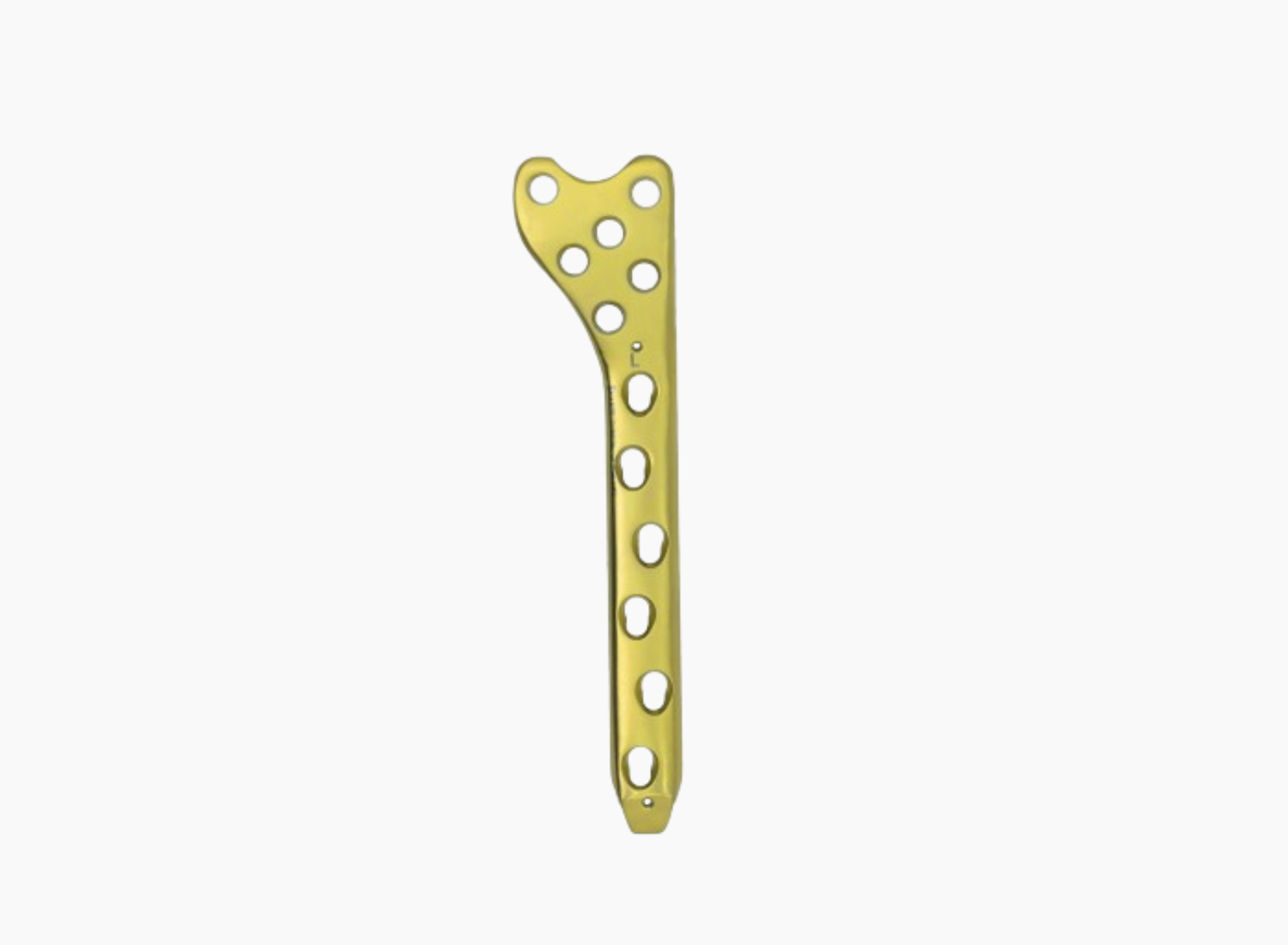

Comlok® Distal Lateral Femur Plate 4.5/5.0mm

Profile:

Width: 16.0 mm
Head Width: 32 mm
Thickness: 5.5 mm
Hole Spacing: 18 mm

Screws to be used

Various options of Comlok® Screws 5.0 mm, Comlok® Cancellous Screws 5.0 mm & 6.0mm and Non-Locking Cancellous 6.0 mm in the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft

Indications

For fixation of intra-articular, supracondylar, periprosthetic fractures of distal femur and fractures extending into the shaft of femur.

Enquire Now
LEFTCatalogue NumberHolesRIGHTCatalogue NumberHoles
TitaniumTi-942.05L to Ti-942.13L5 to 13TitaniumTi-942.05R to Ti-942.13R5 to 13
S.Steel942.05L to 942.13L5 to 13S.Steel942.05R to 942.13R5 to 13

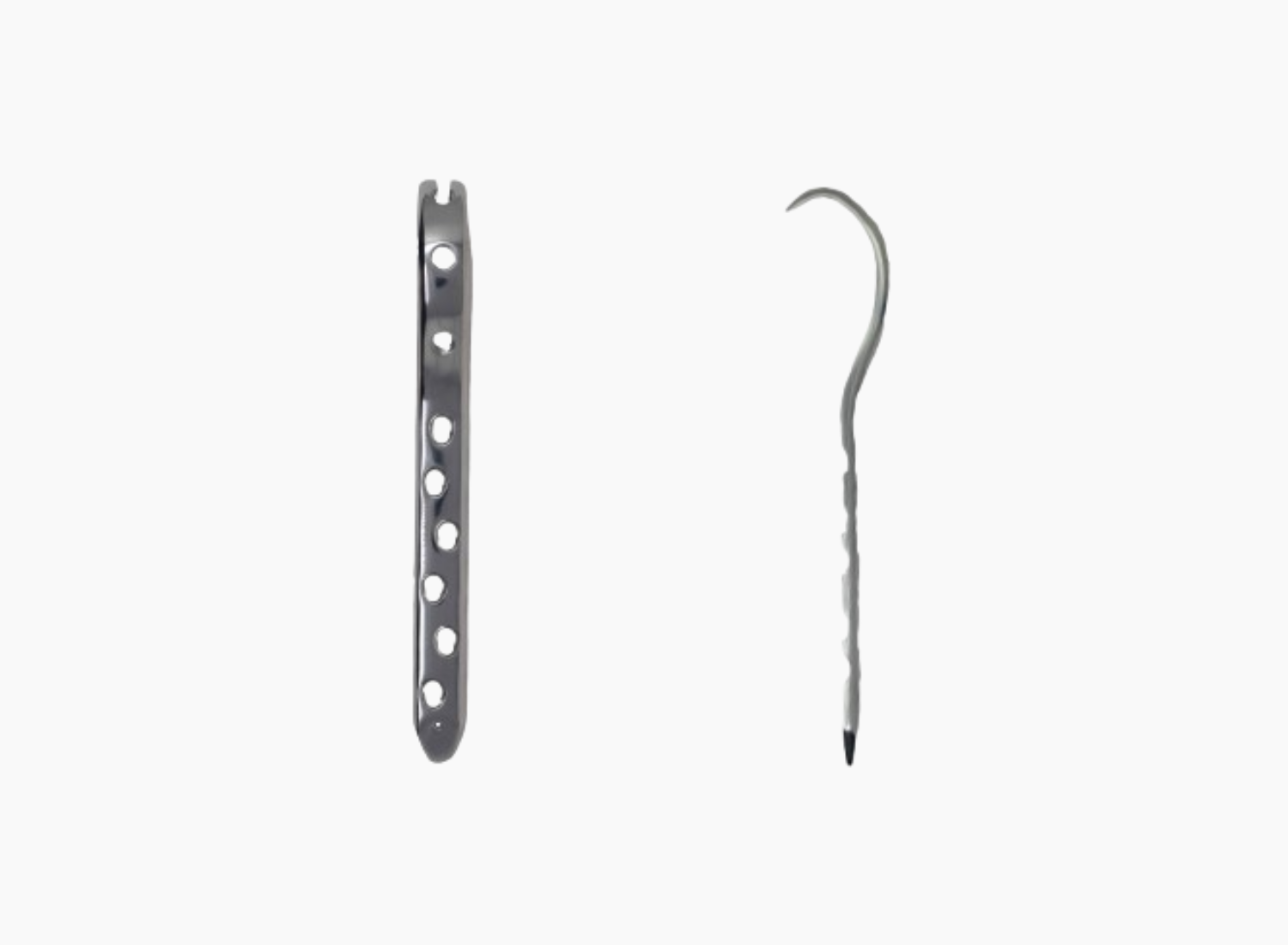

Comlok® Proximal Femur Hook Plate 4.5/5.0mm

Profile:

Width: 17.5 mm
Thickness: 5.5 mm
Hole Spacing: 18 mm

Screws to be used

Comlok® Cannulated 7.0 mm in the first hole and Comlok® Screws 5.0 mm in the second hole of the Head
Comlok® Screws 5.0 mm & Cortical Screws 4.5 mm in the Shaft

Indications

For fixation of fractures of trochanteric region including inter-trochanteric, pertrochanteric, transverse and fractures extending into the shaft of femur.

Enquire Now
Catalogue NumberHoles
TitaniumTi-954.02 to Ti-954.162 to 16
S.Steel954.02 to 954.162 to 16
