Clavicle Plates

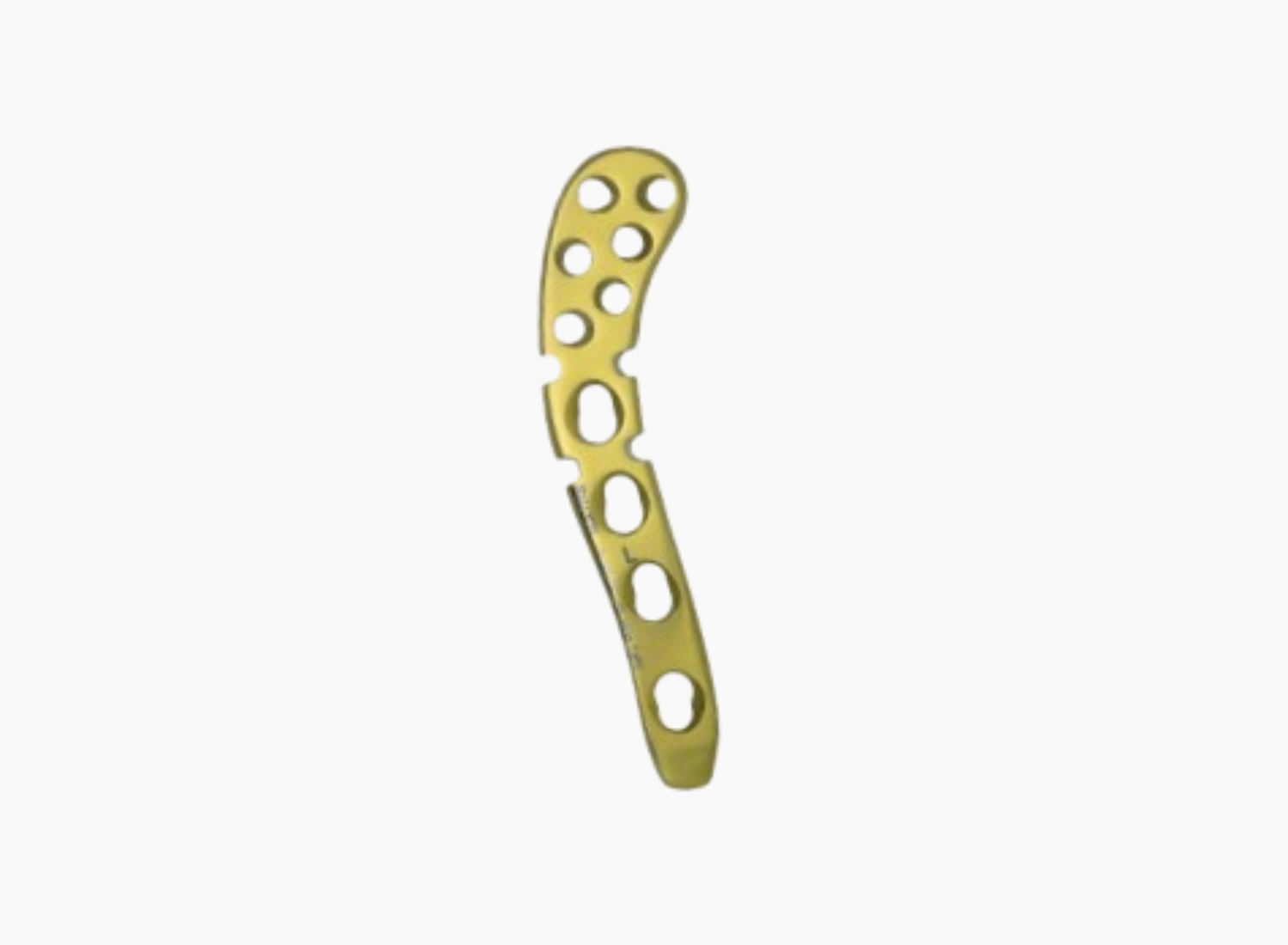

Comlok® Lateral Superior Anterior Clavicle Plate 3.5/2.7mm
Profile:
Shaft Width: 11.0 mm
Thickness: 2.8 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 2.7 mm in the Head
Comlok® Screws 3.5 mm & Cortical 3.5 mm in the Shaft
Indications
For fixation of fractures of lateral clavicle.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-983.04L to Ti-983.08L | 4 to 8 | Titanium | Ti-983.04R to Ti-983.08R | 4 to 8 |
| S.Steel | 983.04L to 983.08L | 4 to 8 | S.Steel | 983.04R to 983.08R | 4 to 8 |
Comlok® Medial Anterior Superior Clavicle Plate 3.5mm
Profile:
Shaft Width: 10.0 mm
Thickness: 2.8 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Cortical 3.5 mm
Indications
For fixation of fractures of medial clavicle.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-982.06L to Ti-982.08L | 6 to 8 | Titanium | Ti-982.06R to Ti-982.08R | 6 to 8 |
| S.Steel | 982.06L to 982.08L | 6 to 8 | S.Steel | 982.06R to 982.08R | 6 to 8 |

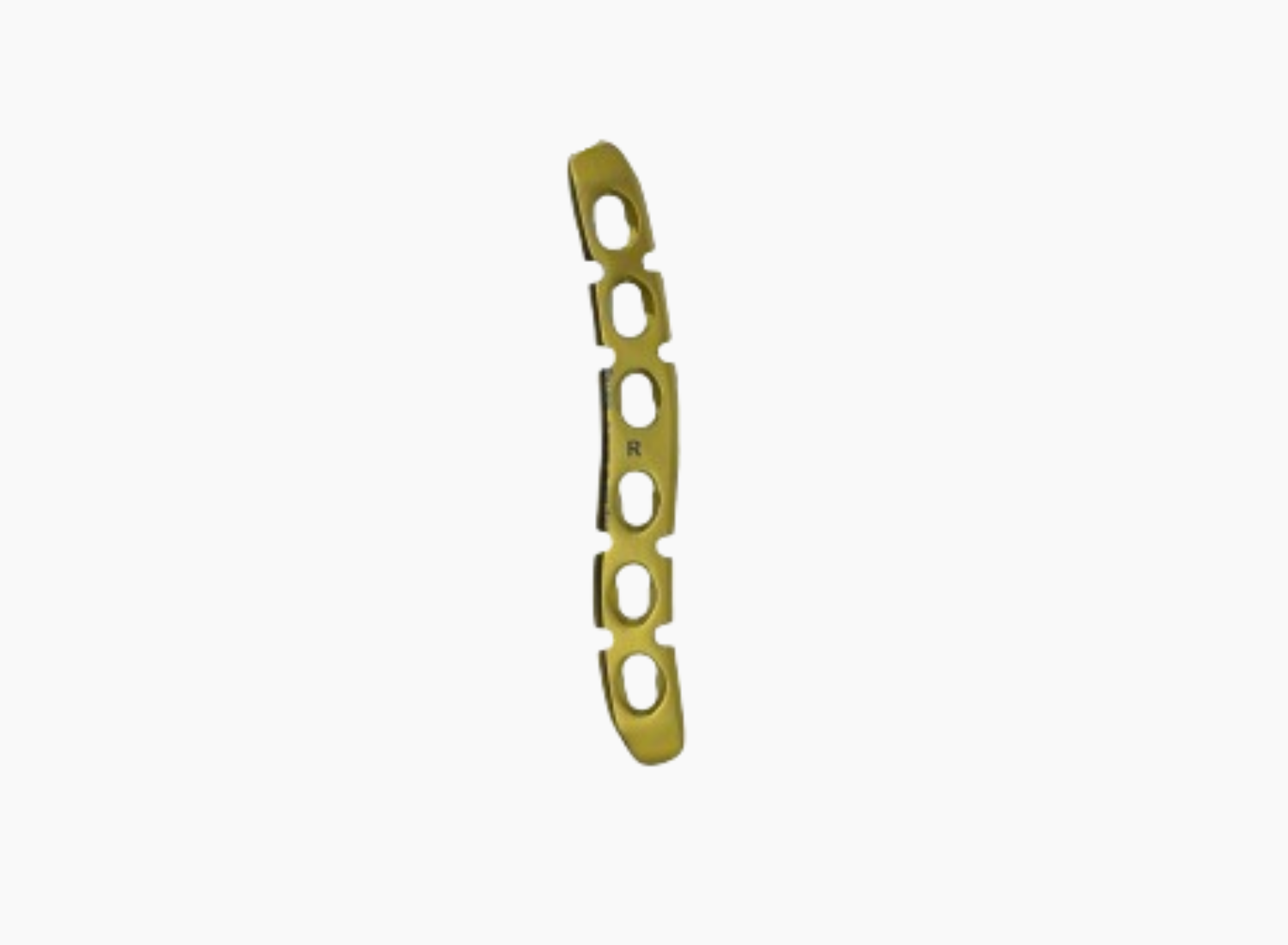

Comlok® Superior Clavicle Plate 3.5mm
Profile:
Shaft Width: 11.0 mm
Thickness: 2.8 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Cortical 3.5 mm
Indications
For fixation of fractures of clavicle shaft.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-984.06L to Ti-984.08L | 6 to 8 | Titanium | Ti-984.06R to Ti-984.08R | 6 to 8 |
| S.Steel | 984.06L to 984.08L | 6 to 8 | S.Steel | 984.06R to 984.08R | 6 to 8 |
Comlok® Clavicle Hook Plate 3.5mm
Profile:
Head Width: 20 mm
Shaft Width: 10.0 mm
Thickness: 2.8 mm
Hook height: 12, 15 & 18 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Cortical 3.5 mm
Indications
For fixation of fractures of lateral clavicle.
| LEFT | Catalogue Number | Holes | Height | RIGHT | Catalogue Number | Holes | Height |
|---|---|---|---|---|---|---|---|
| Titanium | Ti-971.412L to Ti-971.418L | 4 | 12mm to 18mm | Titanium | Ti-971.412R to Ti-971.418R | 4 | 12mm to 18mm |
| S.Steel | 971.412L to 971.418L | 4 | 12mm to 18mm | S.Steel | 971.412R to 971.418R | 4 | 12mm to 18mm |
| LEFT | Catalogue Number | Holes | Height | RIGHT | Catalogue Number | Holes | Height |
| Titanium | Ti-971.512L to Ti-971.518L | 5 | 12mm to 18mm | Titanium | Ti-971.512R to Ti-971.518R | 5 | 12mm to 18mm |
| S.Steel | 971.512L to 971.518L | 5 | 12mm to 18mm | S.Steel | 971.512R to 971.518R | 5 | 12mm to 18mm |
| LEFT | Catalogue Number | Holes | Length | RIGHT | Catalogue Number | Holes | Height |
| Titanium | Ti-971.612L to Ti-971.618L | 6 | 12mm to 18mm | Titanium | Ti-971.612R to Ti-971.618R | 6 | 12mm to 18mm |
| S.Steel | 971.612L to 971.618L | 6 | 12mm to 18mm | S.Steel | 971.612R to 971.618R | 6 | 12mm to 18mm |

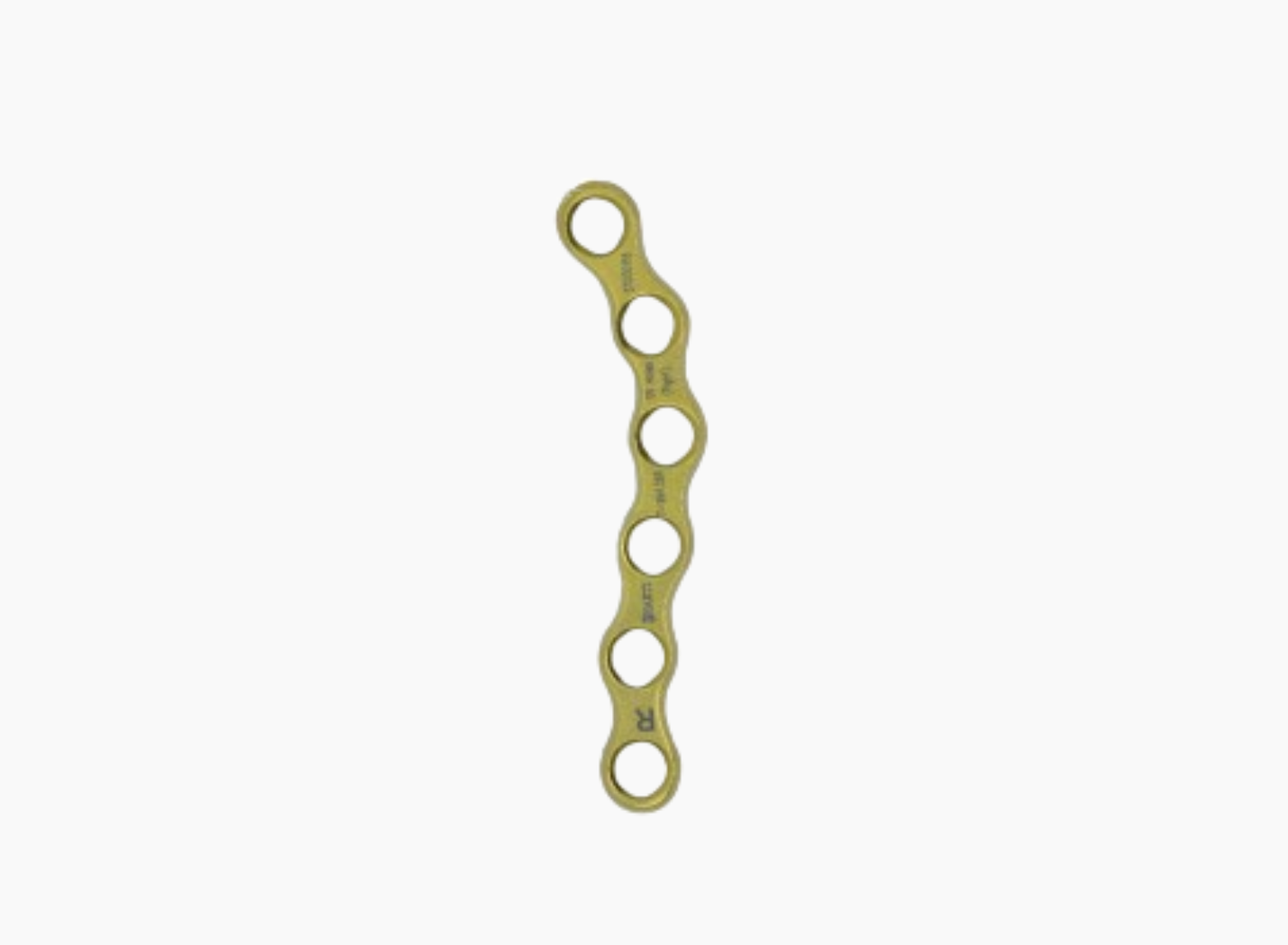

Comlok® Clavicle Plate With Round Holes 3.5mm (S-Shaped)
Profile:
Shaft Width: 10.0 mm
Thickness: 3.0 mm
Hole Spacing: 13 mm
Screws to be used
Comlok® Screws 3.5 mm & Cortical 3.5 mm
Indications
For fixation of fractures and osteotomies of clavicle bone.
| LEFT | Catalogue Number | Holes | RIGHT | Catalogue Number | Holes |
|---|---|---|---|---|---|
| Titanium | Ti-964.06L to Ti-964.12L | 6 to 12 | Titanium | Ti-964.06R to Ti-964.12R | 6 to 12 |
| S.Steel | 964.06L to 964.12L | 6 to 12 | S.Steel | 964.06R to 964.12R | 6 to 12 |
