IML Locking Bolts

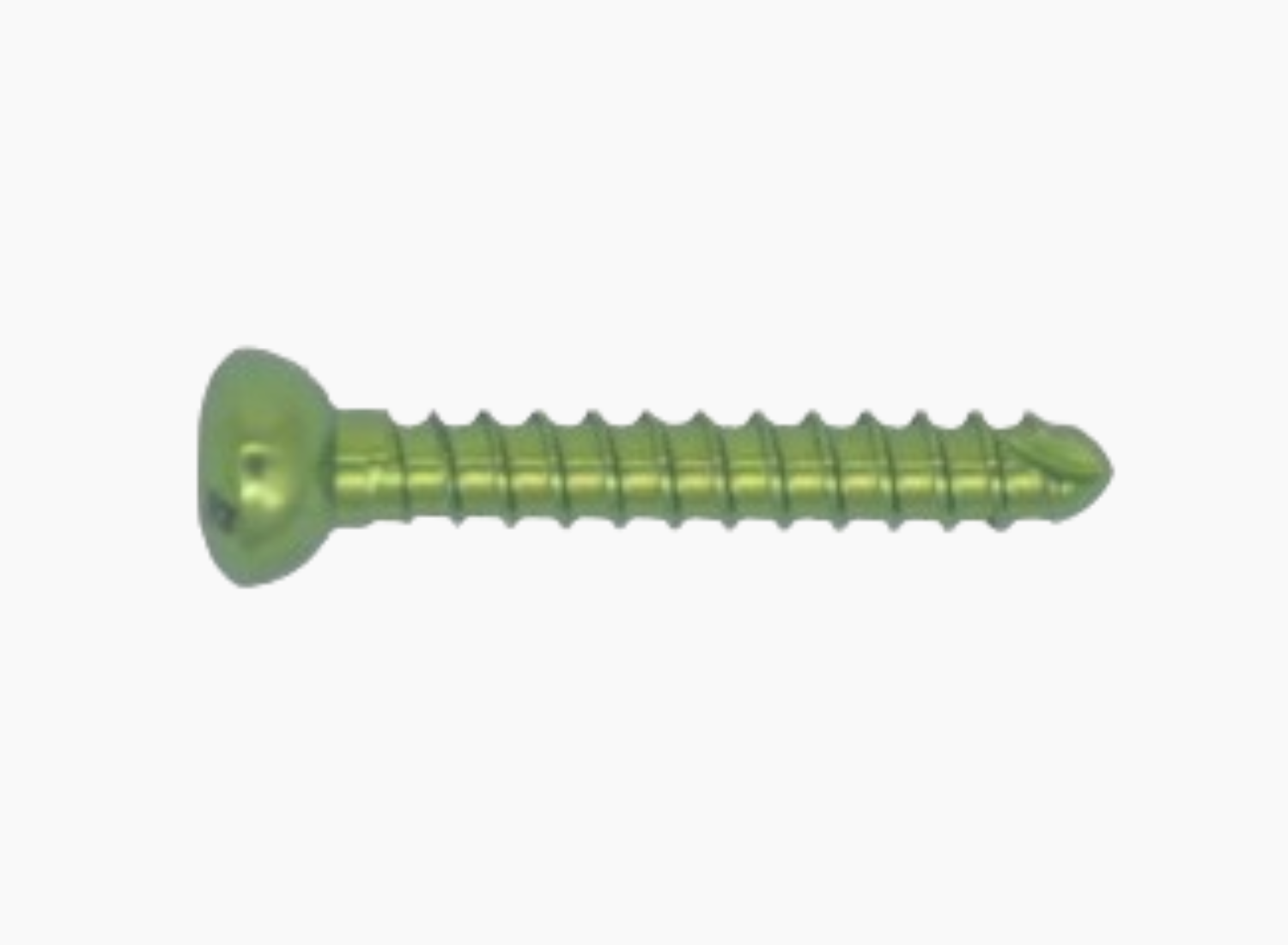

Locking Bolts Dia: 4.9mm
Profile:
Thread Dia: 4.9 mm
Core Dia: 4.0 mm
Drill Size: 4.0 mm
Screws Driver Tip Size: 3.5 mm (Large)
| Stainless Steel | Titanium | Dia (mm) | Length (mm) |
|---|---|---|---|
| 015.24 - 015.120 | Ti-015.24 - Ti-015.120 | 4.9 | 24 - 120 |

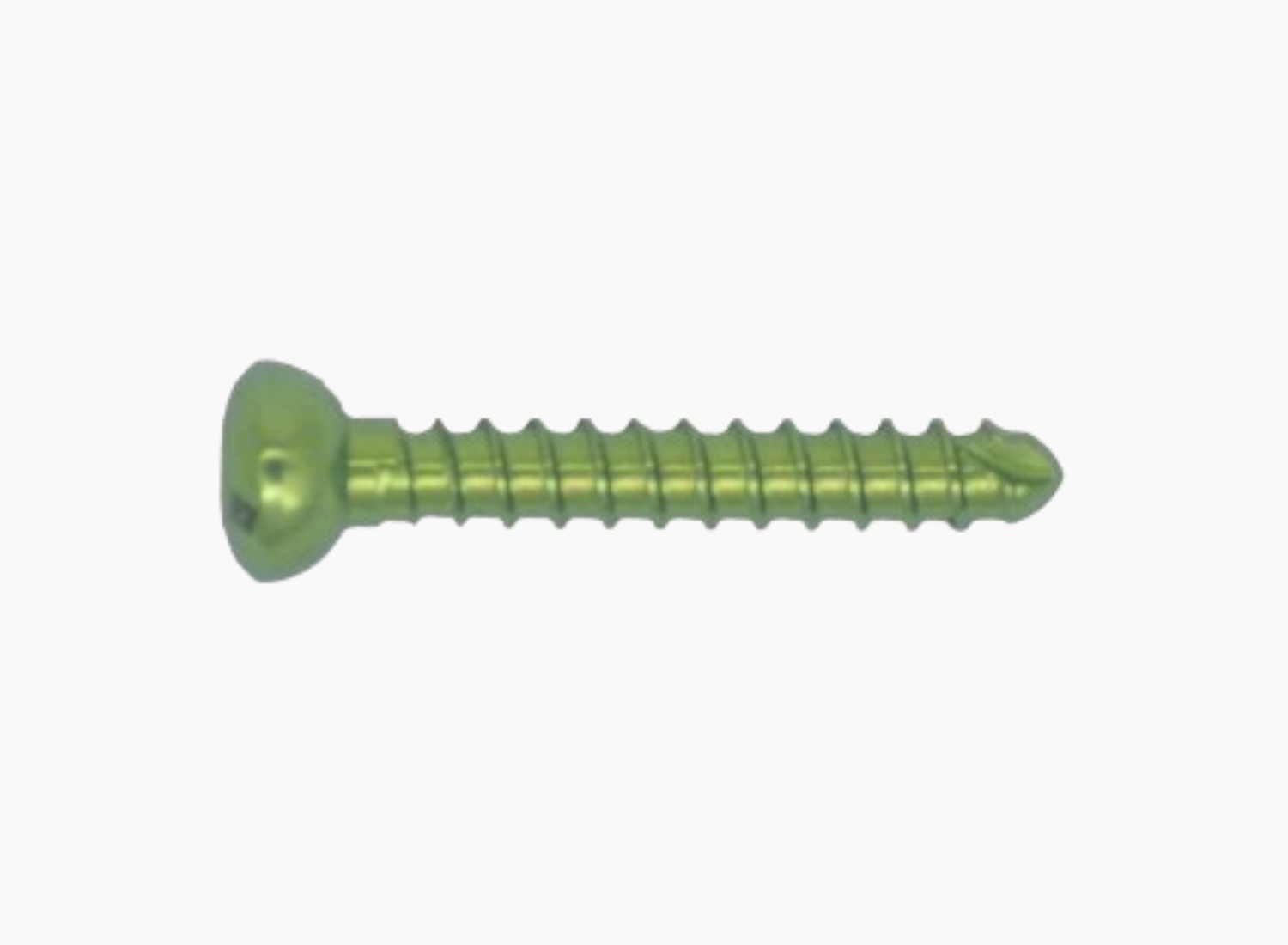

Locking Bolts Dia: 3.9mm
Profile:
Thread Dia: 3.9 mm
Core Dia: 3.0 mm
Drill Size: 3.2 mm
Screws Driver Tip Size: 2.5 mm (Small)
| Stainless Steel | Titanium | Dia (mm) | Length (mm) |
|---|---|---|---|
| 014.16 - 014.60 | Ti-015.16 - Ti-015.60 | 3.9 | 16 - 60 |

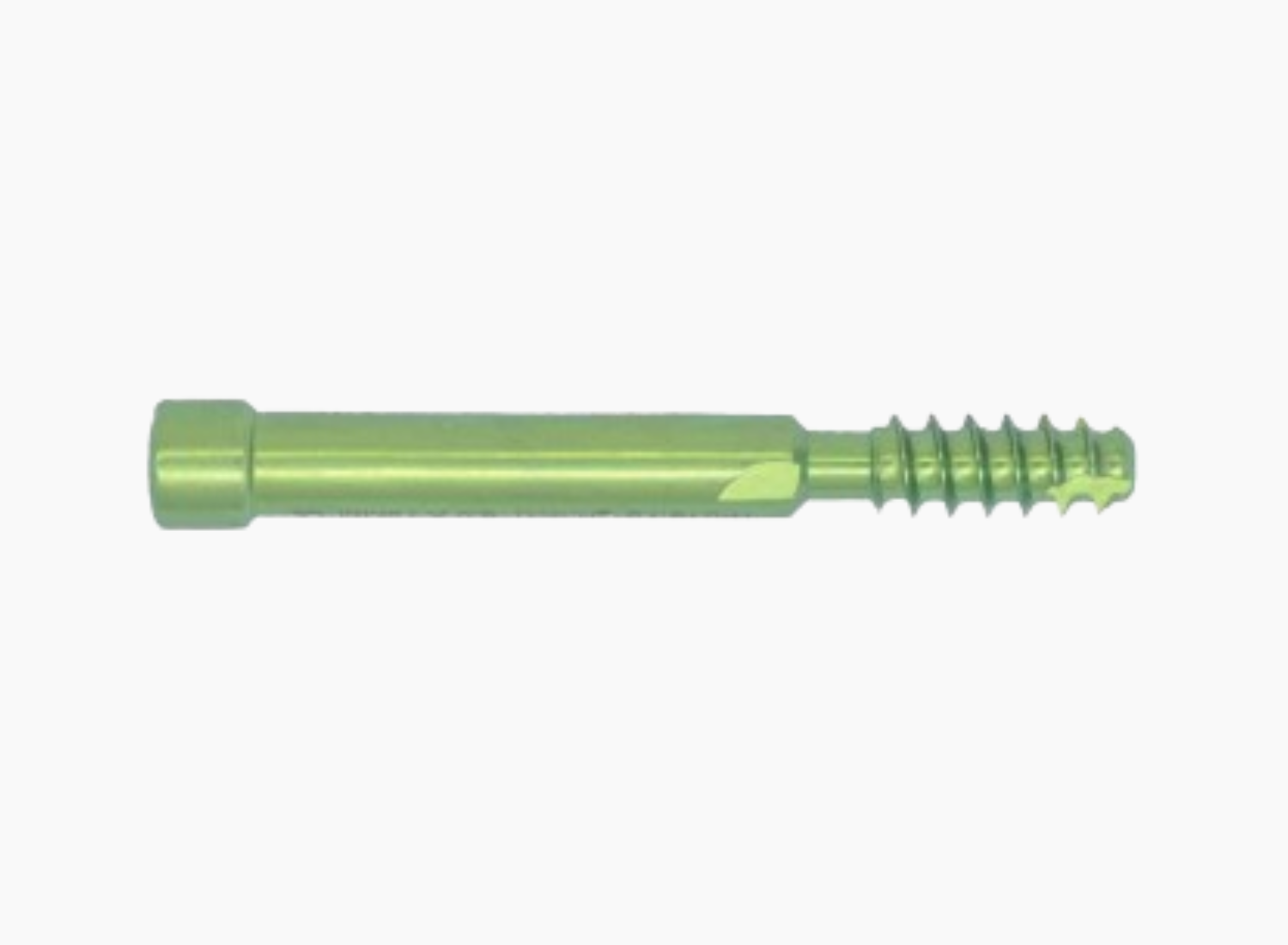

Locking Bolts Dia: 6.5 mm
Profile:
Thread Dia: 6.5 mm
Core Dia: 4.8 mm
Shaft Dia: 6.5 mm
Drill Size: Cannulated Step Reamer 4.8/6.0mm
Screws Driver Tip Size: 3.5 mm (Large)
| Stainless Steel | Titanium | Dia (mm) | Length (mm) |
|---|---|---|---|
| 018.60 - 018.125 | Ti-018.60 - Ti-018.125 | 6.5 | 60 - 125 |
Locking Bolts Dia: 8.0 mm
Profile:
Thread Dia: 8.0 mm
Core Dia: 6.0 mm
Shaft Dia: 8.0 mm
Drill Size: Cannulated Step Reamer 6.0/8.0mm
Screws Driver Tip Size:5.0 mm
| Stainless Steel | Titanium | Dia (mm) | Length (mm) |
|---|---|---|---|
| 019.60 - 019.125 | Ti-019.60 - Ti-019.125 | 8.0 | 60 - 125 |
